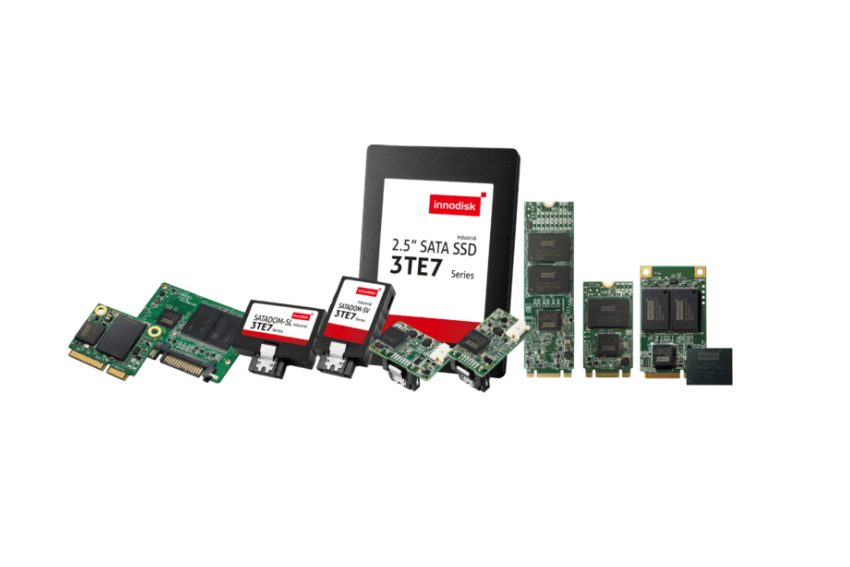

Innodisk product categories
StabilityPOWERING THROUGH WHEN THE SITUATION BECOMES UNSTABLE
Stability: Cable-less Power
|The Innodisk SATADOM SSDs will fit in neatly in any embedded system, industrial computer or server motherboard. Plug and play is enabled through our patented Pin 7/ Pin 8 Vcc technology, eliminating the need for any power cables.|
|A Smooth Integration
As the SATADOM SSD’s power is supplied through the connection itself, there is no need for any inconvenient wiring clogging up your system. And no wire means no extra signal travel time, keeping everything running smoother.
|When Size is of the Essence
With our compact form factor and wire-less setup, the SATADOM takes up almost no space at all. With fewer obstructions it looks neater and air flows faster; simply put, SATADOM makes it all easier!
|For When Job Gets Tough
Pin 8’s angled pins not only provide power but also compresses against the SATA connector when mated. So even if the system sees harsh conditions, SATADOM will still stay firmly in place.
|RECLine™ meets the strict demands of surveillance data recording. This proprietary firmware optimizes the recording capabilities of solid state drives (SSD), ensuring smooth performance with minimal frame-loss.|
|Unwavering Recording Stability
We have tweaked the firmware of our RECLine™ SSD drive to provide the optimal performance for surveillance applications. As the name suggests, the sustained write performance is kept at a high and steady level without any dips in recording quality.
|Surpassing the Inherent Limits
Every flash device needs to run certain background operations to maintain efficiency. However, these operations can also interfere with ongoing recording. RECLine™ solves this inherent issue by smart resource allocation ensuring no interference to recording operations.
|A Novel Approach to Flash Firmware
Innodisk’s dedicated firmware team has completely overhauled onboard configuration to create RECLine™. This proprietary firmware customization consists of a complete re-design of garbage collection, TRIM and wear-leveling for modern surveillance applications.
|Innodisk’s iCell Technology ensures that DRAM-based solid state drive (SSD) can protect mission critical data and prevent data loss during an unexpected power failure. This is achieved by integrated iCells delivering an instantaneous charge to the SSD to make sure the data is safely stored.|
Reengineering Data Loss Prevention
Innodisk understands that data stored in the drive’s volatile cache (DRAM) often contains more recently used data and system critical data. As such, making sure the data is secure in the event of a power outage is paramount. That is to say, if power suddenly drops, the SSD can promptly save the data to flash memory to avoid data loss and device restaring issues.
Raising the Bar through Hardware Architecture
Innodisk has modified the traditional SSD IC board without compromising normal performance operations. iCell Technology features a unique robust design, engineering extra power buffering capacitors on the IC board, which provide an emergency charge to the system if needed.
Exponential Time Gains
In traditional SSDs without iCell Technology, emergency residual system power only holds for a duration of 2ms. In such a short time frame, the SSD is unable to write from the memory cache to the flash memory, leading to data loss. iCell SSDs’ emergency residual power on the other hand extends this to 60ms, this translates into a 30 times longer duration to save data from volatile memory.
Stability: IData Guard
|In the event of a sudden power loss, iData Guard kicks in both just before and after the outage. By terminating data writing and using table re-mapping, iData Guard ensures efficient power cycling and data Integrity.|
As soon as low power is detected, the SSD will immediately stop accepting new commands from the host and ensure that the last operation is completed. The data will be safely stored and is readily accessed when power comes back on.
|Hardware and Firmware in Harmony
iData Guard’s algorithm smartly integrates hardware with firmware. When the detector picks up a drop in voltage it will inform the SSD controller which in turn will ensure that data is securely saved before power is lost.
Stability: iPower Guard™
|Many remote applications are operating under uncertain power supply conditions. This can lead to system crashes during startup and shutdown, and potentially damage the SSD. iPower Guard™ is a sophisticated technology that safeguards your SSD and prevents power instability from affecting your system.|
|When Reacting is Not Enough
Most power stability features focus on mitigating power loss incidents when they happen. iPower Guard™, on the other hand, goes further with preventive measures that safeguard the SSD during both startup and shutdown. This means that most power instability is solved without you even noticing!

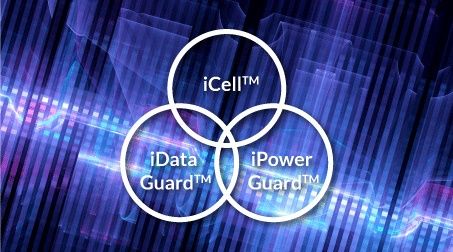

iPower Guard™ works perfectly on its own. But the greatest protection possible is in combination with our power loss protection technologies, iData Guard™ and iCell™. Together these technologies can handle any power supply issue that might arise!
SecurityDEMONSTRATING ABSOLUTE DATA SECURITY IN THE MOST CRITICAL CIRCUMSTANCES
|256-bit Advanced Encryption Standard|
|Advanced Encryption Standard (AES) is the standard cipher used by the US government to protect confidential data and documents on storage devices.|
|Only Complete Data Security is Acceptable
With the intricacy of AES encrypting, there is simply no way to brute force it open. The encryption key is randomly generated and is unknown to both the user and the manufacturer. The key can be destroyed in less than a second, rendering all stored data useless as it cannot be decrypted.
|Rapid Encryption with No Footprint
All operations are handled by SSD hardware drive which means zero impact on system speed when encrypting or decrypting data. Being a hardware-based encryption, the Advanced Encryption Standard (AES) is fully OS-agnostic and will run smoothly regardless of what system is in use.
|Management Made Simple
TCG Opal is the most recognized standard for self-encrypting drives (SED). Innodisk’s SSDs are compliant with TCG OPAL 2.0, allowing for a user friendly authentication and better overall device management.
Security: Write Protect
|Storing Data Write Protection|
|With the write protect feature you can easily safeguard the data stored on your flash device, SSD drive by triggering the read-only function. This security measure will effectively stop any tampering or other malicious use of your device.|
|Full Hardware Lock-down
Write protect is easily enabled on our SSDs. Innodisk's write protection devices are designed with general purpose input/output pins (GPIO) that can easily be triggered with a jumper. This acts as a safeguard that protects the data on your device from being altered.
|Software Triggered Protection
We know that physically accessing the hardware is not always that easy! So in addition to the hardware solution, Write Protect can also be triggered through software. By customizing the firmware of the flash module, we offer secure write protect that is triggered through ATA command.
|Ensuring Full Compliance
With high risks and high rewards, applications such as casino gaming have strict regulations in place to protect both the operator and the customer. This also includes storage devices. With our experienced firmware team, we can offer tailor-made solutions that are in full compliance with all relevant regulations.
RecoveryNEXT-LEVEL RECOVERY SOLUTIONS FOR ANY APPLICATION
Recovery: Local Recovery
|Our local recovery solutions equip operators with the industry’s best tools for expedient on-site device recovery.|
Innodisk’s local recovery solutions include advanced RAID solutions such as embedded RAID modules, flash storage devices perfect for RAID configurations, as well as software designed for seamless RAID management.
|Hardware and Software Working in Tandem
Innodisk’s local recovery technology emphasizes the importance of hardware, firmware, and software working in tandem to provide a reliable and fast recovery experience accessible to all.
|Powerful Local Recovery
iCover, Innodisk’s user-friendly backup and recovery software tool, provides advanced recovery options that allow operators to recover systems to a working state with just a few clicks – using either bootable media or a function key trigger.
Recovery: Cloud Recovery
|Our cloud recovery solutions enable operators to recover devices remotely through the cloud – no matter the severity of the device failure.|
|In-band Cloud Recovery
Innodisk’s cloud administration platform, iCAP, combined with Innodisk hardware provides a super-fast and reliable cloud recovery solution. Device failures are detected in no time, and operators can use iCAP to return devices to normal wherever they and their devices are.
|Out-of-band Cloud Recovery
Innodisk’s out-of-band-enabled flash storage devices feature advanced integrated hardware and firmware technologies that enable full device recovery – remotely with iCAP – even when the entire operating system has crashed.
Innodisk’s cloud recovery solutions are perfect for any operating environment and support public clouds, private clouds, as well as on-premise deployment for maximum flexibility and uncompromised security.
All Innodisk’s cloud recovery solutions are fortified with excellent 360-degree security that ensures that data and devices are protected from external threats and that only authorized personnel can initiate device recovery.
|InnoOSR’s patented firmware technology enables truly next-level recovery ideal for applications that can afford little downtime.|
Recovery with a Single Click
InnoOSR’s unique architecture allows operators to restore InnoOSR SSD drive to a working state with a single click of a (physical) button – or through other innovative ways depending on how the operator integrates InnoOSR in their application.
Low Cost, Full Recovery
Innodisk designed InnoOSR to deliver lightning-fast recovery with minimal overhead. Fully independent of the operating system, the cloud, or any other proprietary solution, InnoOSR is a no-fuss SSD Recovery technology that is simply great at what it does.
Flexibility Like No Other
InnoOSR’s brilliantly simple architecture allows system integrators to use it in new and innovative ways. InnoOSR’s powerful recovery is initiated with a GPIO signal – from something as simple as a button or a complex and unique new system. Innovation is easy with InnoOSR.
ExpansionENSURING THE SMOOTHEST MOST EFFICIENT SYSTEM EXPANSION
|CANbus is a simple, low-cost and effective wiring architecture that was first used in the automotive industry, but is now commonplace in a variety of industries.|
|Achieving the Highest Ruggedized Standard
We know that every vehicle application is different. To ensure the perfect fit, our modules are J1939 compliant, allowing for wide customization and ensuring that your CANbus device is ready for heavy-duty operation.
|An Open Path to Linux
The number of Linux devices is growing. To achieve full compatibility, we add a modified SocketCAN driver and customization tools for your Linux devices
|Keeping It as Light as Possible
CANbus connects nodes together in a single circuit without the need of a main host computer. This means less wiring, which in turn means less weight and more freed up space.
|A Flexible and Easy Integration
With flexible connection and mounting options, our mPCIe EMUC-B202 CANbus module can easily be integrated into your system.
|Keeping the Signal Clean
Our CANbus module integrates terminal resistors that ensure a clean signal while safeguarding against signal reflection.
Expansion: RAID 1
|Seamless Embedded RAID 1 Solution|
|RAID 1 is a simple and proven technology that increases SSD performance and data integrity by either striping or mirroring data across two or more storage units.|
|A Seamless Integration
Building RAID can be both time-consuming and burdensome on the CPU. Innodisk modules elegantly solve this by letting the integrated controller do all the RAID building. This means that there is minimal impact on ongoing system operation.
|Keeping your Data Safe
With RAID, and especially RAID level 1, data is secure as even in the case of one disk failing. As all data is mirrored, disks can easily be swapped and data integrity maintained.
|Designed with Limited-Space in Mind
Embedded applications often struggle with space constraints – this is why our RAID solutions offer compact form factors, ranging from mPCIe to standard PCIe, and flexible mounting options, guaranteeing a seamless fit with your application.
|A Determined Focus on User Simplicity
iRAID is Innodisk’s RAID 1 proprietary software that allows you to easily monitor the status of individual SSDs, while also promptly alerting the user if any changes were to occur.

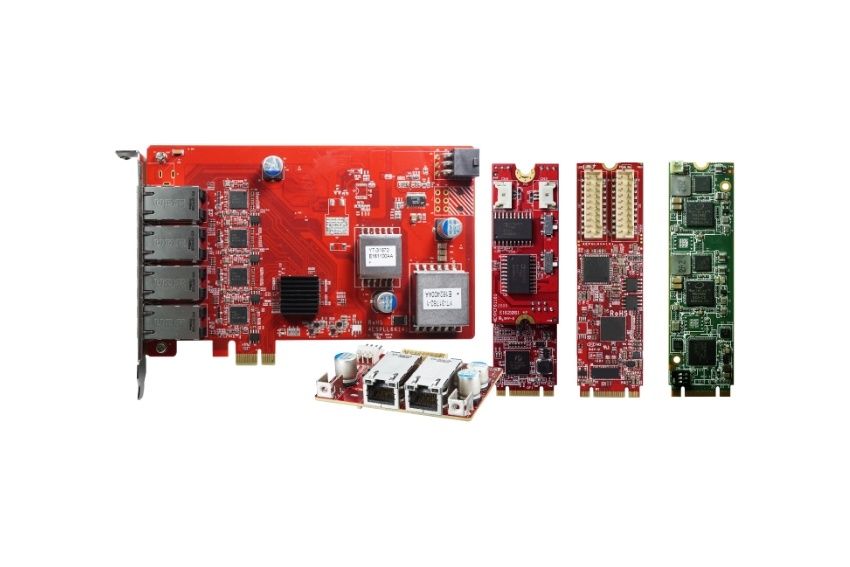

|Out-of-Card Installation refers to the Innodisk modules that support multiple connection functionalities. In case there is not enough dedicated space for a module it can still be attached elsewhere connected through a cable.|
Perfect for Tight Spaces
Embedded system integrators often struggle with space limitations when expanding their system. With small form factors and flexible integration alternatives, Innodisk modules will fit in any application.
An Easy Integration
Our expansion cards offer mounting holes and separate connection interfaces, allowing the card to be safely installed without using the card socket.
