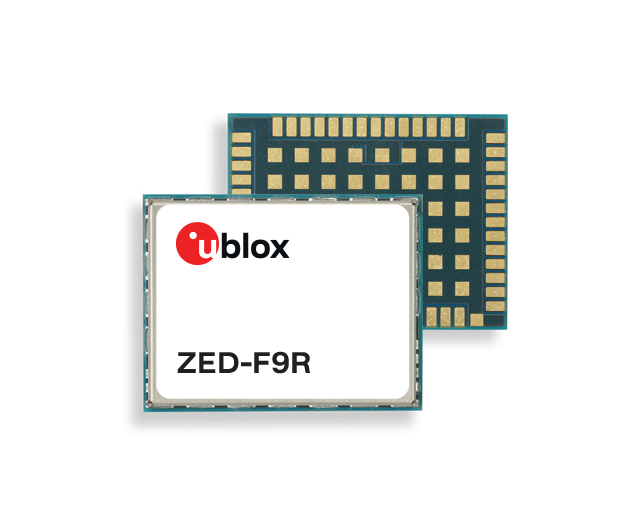

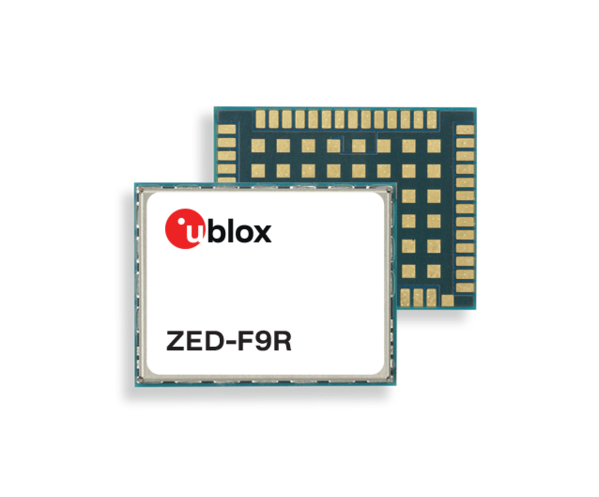

ZED-F9R-03B
u-blox*F9 high precision dead reckoning module*
dual band*GNSS*prof. grade*17x22x2.4mm
HPS 1.30
dual band*GNSS*prof. grade*17x22x2.4mm
HPS 1.30
Manufacturer Item No.:
ZED-F9R-03B
Item number:
ZED-F9R-03B
Choose Variant:
ZED-F9R-03B
from 1 pieces
137,66 € / 1 pieces
from 10 pieces
135,32 € / 1 pieces
from 50 pieces
130,89 € / 1 pieces
Add to Favorites
- Multi-band GNSS receiver delivers centimeter-level accuracy
- Fully integrated solution for fast time-to-market
- Dynamic models for slow-moving service robots and electric scooters
- SPARTN-format SSR corrections for easy and efficient implementation
Product variants:
ZED-F9R-01B: u-blox F9 dual-band GNSS module with high precision sensor fusion, SBAS, and SLAS
ZED-F9R-02B: u-blox F9 dual-band GNSS module with high precision sensor fusion, SBAS, and SLAS. Supports slow-moving service robotics and e-scooters.
ZED-F9R-03B: u-blox F9 dual-band GNSS module with high precision sensor fusion, SBAS, and SLAS. Supports SPARTN 2.0 and QZSS CLAS.
| Antenna Option: | Antenna pin |
|---|---|
| Dimensions: | 22 x 17 x 2.4 mm |
| Form factor: | ZED |
| GNSS Bands: | L1 / L2 |
| Memory: | Flash |
| GNSS Oscillator: | TCXO |
| GNSS supported: | BeiDou, Galileo, GLONASS, GPS / QZSS |
| I2C: | 1 |
| SPI: | 1 |
| S/W Features: | Additional SAW, Carrier phase output, Internal oscillator, Programmable flash memory, Timepulse output |
| Temperature: | -40 to +85 °C |
| UART: | 2 |
| USB: | 1 |
| Chip: | u-blox F9 |
| Voltage: | 2.7 - 3.6 VDC |
