C102-F9R-0

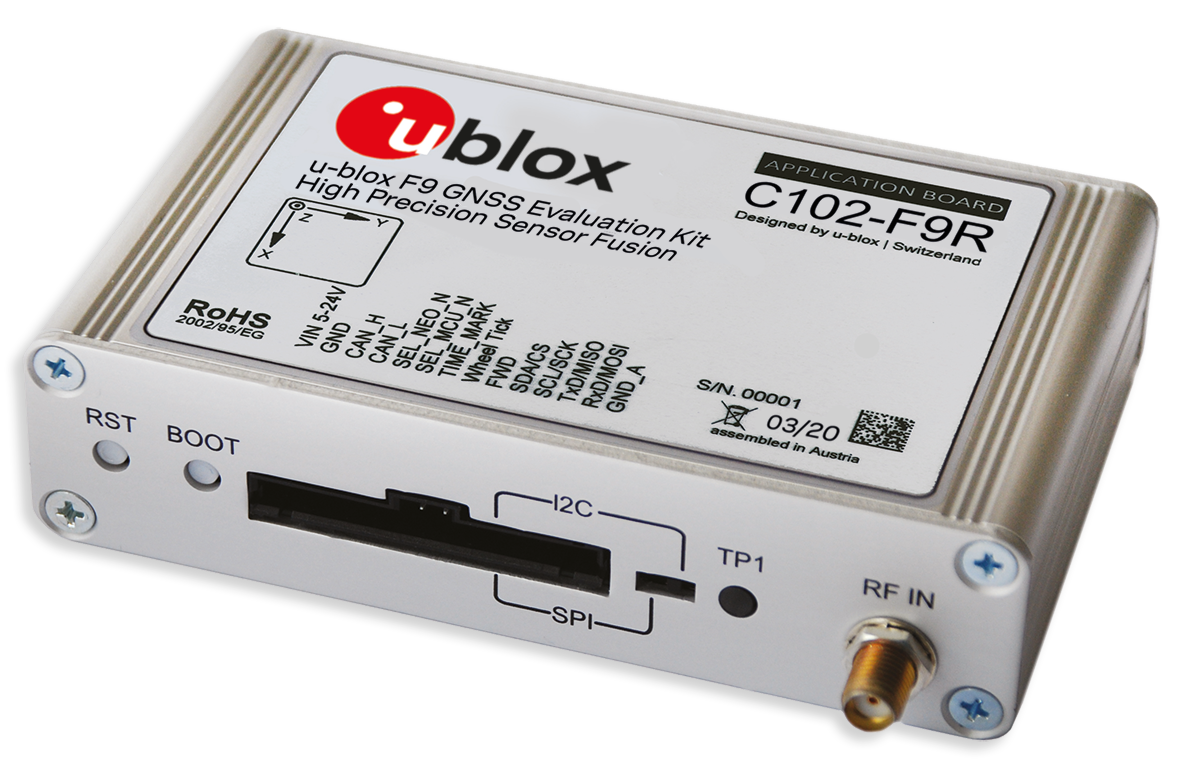

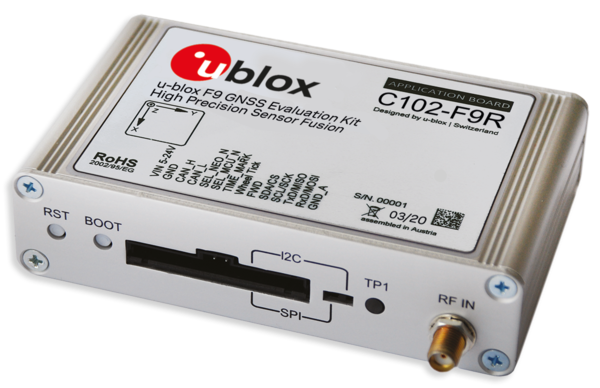

u-blox*application board for ZED-F9R (for integration use, board Vers. A)
Manufacturer Item No.:
C102-F9R-0
Item number:
C102-F9R-0
Add to Favorites
- Multi-band multi-constellation GNSS
- Dead reckoning and real-time kinematic (RTK)
- Configurable CAN interface
- Dedicated pins for wheel tick and direction inputs
- USB, UART, RS-232 connections
- A short-term battery-backed RAM (BBR)
- Application board with ZED-F9R
- Active multi-band GNSS antenna with a 5 m cable
- 14-pin connector breakout cable
- One month trial license from correction service provider (available in regions defined by the service provider)
- USB cable
| Form factor: | Application Board |
|---|---|
| Chip: | u-blox F9 |
| GNSS supported: | BeiDou, Galileo, GLONASS, GPS / QZSS |
| GNSS Oscillator: | TCXO |
