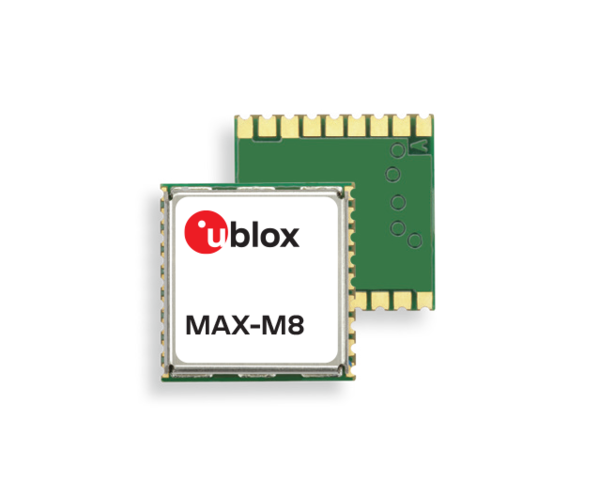

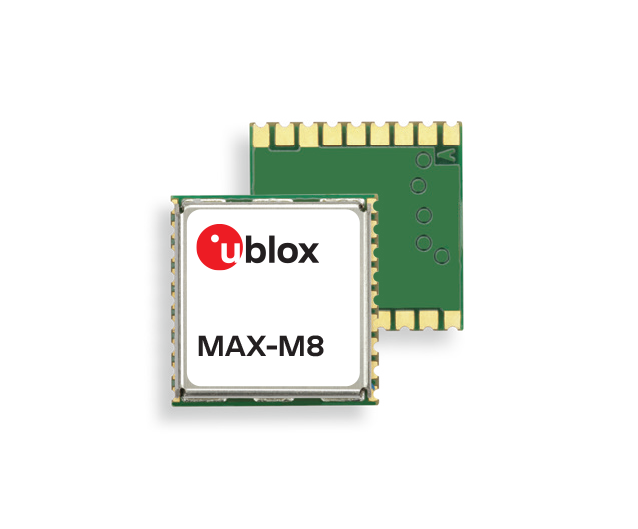

MAX-M8W-0

u-blox M8 GNSS LCC Module*TCXO*ROM*SCP*9.7x10.1mm GPS/QZSS, GLONASS, BeiDou*500 pcs/reel
Manufacturer Item No.:
MAX-M8W-0
Item number:
MAX-M8W-0
from 1 pieces 21,93 € / 1 pieces
from 10 pieces 18,80 € / 1 pieces
from 50 pieces 16,87 € / 1 pieces
from 100 pieces 13,43 € / 1 pieces
21,93 € / 1 pieces
Orderable, delivery time approx. 8 weeks
plus Shipping and VAT
Usually ships in 1 to 3 days
Add to Favorites

Small GNSS modules for easy manufacturing

  • Concurrent reception of up to 3 GNSS (GPS, Galileo, GLONASS, BeiDou)
  • Industry leading 167 dBm navigation sensitivity
  • Product variants to meet performance and cost requirements
  • Miniature LCC package
  • Superior anti-spoofing and anti-jamming
  • Pin-compatible with MAX-7 and MAX-6
Form factor:MAX
Chip:u-blox M8
GNSS supported:BeiDou, Galileo, GLONASS, GPS / QZSS
GNSS Bands:L1
GNSS Oscillator:TCXO
Memory:ROM
Antenna Option:Antenna pin
Temperature:-40 to +85 °C
Dimensions:10.1 x 9.7 x 2.5 mm
Voltage:2.7 - 3.6 VDC
UART:1
I2C:1
S/W Features:Antenna short circuit detect / protect pin
