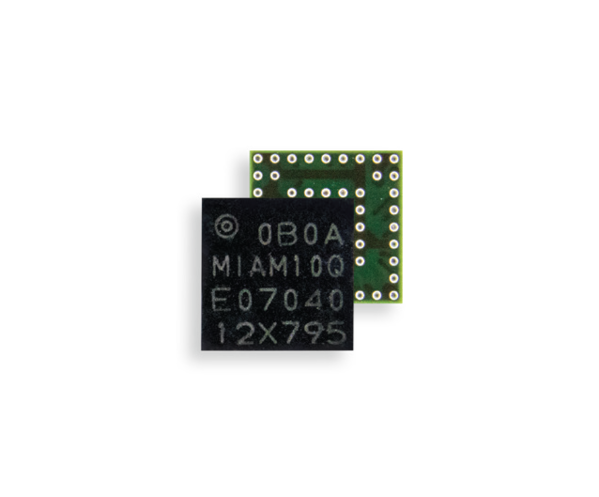

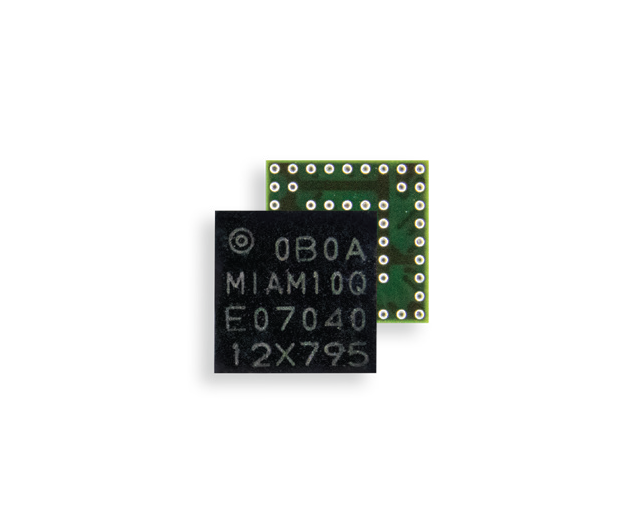

- 4.5 x 4.5 mm chip-sized module requiring no external components
- Less than 25 mW power consumption without compromising GNSS performance
- Twice the battery life by leveraging optimized power save modes
- Maximum position availability with concurrent reception of 4 GNSS
- Proven excellent performance, even with small antennas
| Form factor: | MIA |
|---|---|
| Chip: | u-blox M10 |
| GNSS supported: | BeiDou, Galileo, GLONASS, GPS / QZSS |
| GNSS Bands: | L1 |
| GNSS Oscillator: | TCXO |
| Memory: | ROM |
| Antenna Option: | Antenna pin |
| Dimensions: | 4.5 x 4.5 x 1 mm |
| Temperature: | -40 to +85 °C |
| Voltage: | 1.76 - 3.6 VDC |
| UART: | 1 |
| I2C: | 1 |
| S/W Features: | Additional LNA, Additional SAW, Built-in sensor, RTC crystal |
