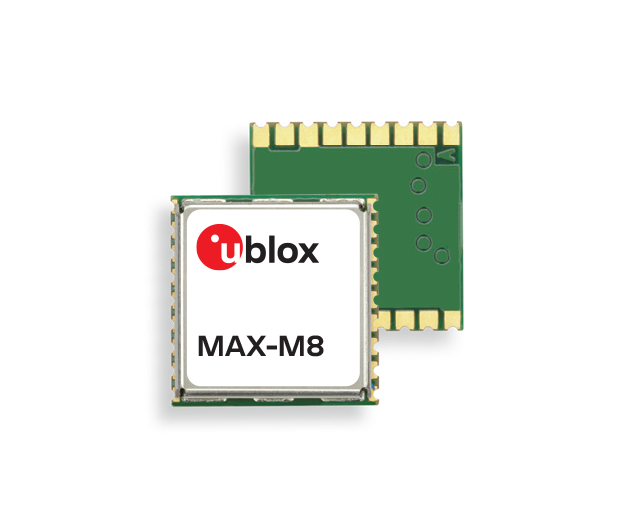

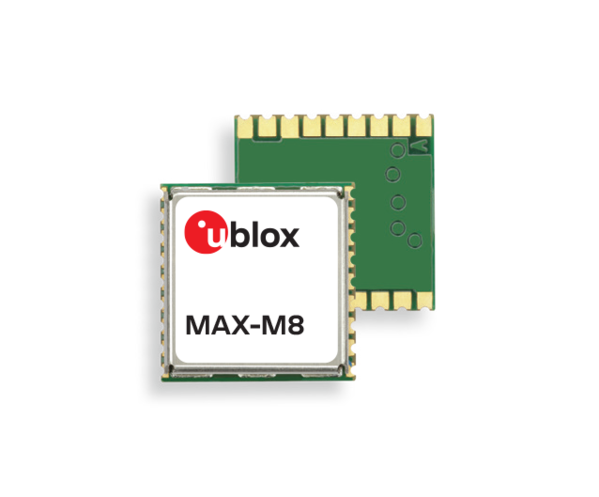

MAX-M8C-0
u-blox M8 GNSS LCC Module*Crystal*ROM*9.7x10.1mm GPS/QZSS, GLONASS, BeiDou*500 pcs/reel
Manufacturer Item No.:
MAX-M8C-0
Item number:
MAX-M8C-0
from 1 pieces
15,17 € / 1 pieces
from 10 pieces
13,00 € / 1 pieces
from 50 pieces
11,67 € / 1 pieces
from 100 pieces
9,29 € / 1 pieces
Add to Favorites
Small GNSS modules for easy manufacturing
- Concurrent reception of up to 3 GNSS (GPS, Galileo, GLONASS, BeiDou)
- Industry leading 167 dBm navigation sensitivity
- Product variants to meet performance and cost requirements
- Miniature LCC package
- Superior anti-spoofing and anti-jamming
- Pin-compatible with MAX-7 and MAX-6
| Form factor: | MAX |
|---|---|
| Chip: | u-blox M8 |
| GNSS supported: | BeiDou, Galileo, GLONASS, GPS / QZSS |
| GNSS Bands: | L1 |
| GNSS Oscillator: | Crystal |
| Memory: | ROM |
| Antenna Option: | Antenna pin |
| Temperature: | -40 to +85 °C |
| Dimensions: | 10.1 x 9.7 x 2.5 mm |
| Voltage: | 1.65 - 3.6 VDC |
| UART: | 1 |
| I2C: | 1 |
| S/W Features: | RTC crystal, Timepulse output |
