CAM-M8Q-0
u-blox M8 GNSS Antenna Module*ROM*TCXO SAW*2.7-3.6V*9.6 x 14.0mm*500 pcs/reel
Manufacturer Item No.:
CAM-M8Q-0
Item number:
CAM-M8Q-0
from 1 pieces
24,20 € / 1 pieces
from 10 pieces
20,74 € / 1 pieces
from 50 pieces
18,62 € / 1 pieces
from 100 pieces
14,82 € / 1 pieces
Add to Favorites

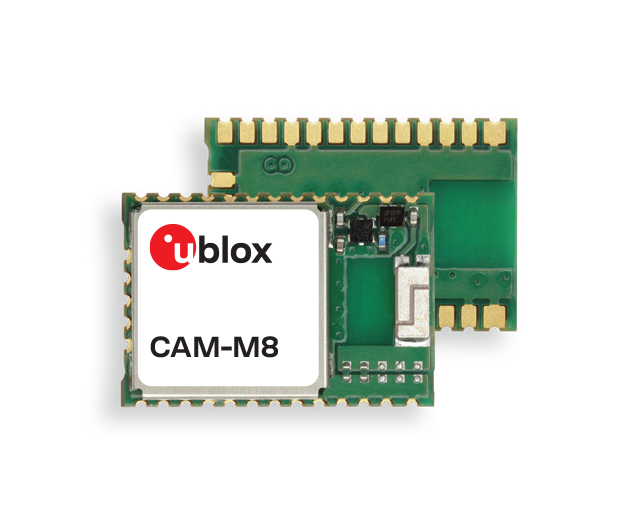

Smart antenna module for omnidirectional GNSS reception
- Concurrent reception of up to 3 GNSS (GPS, Galileo, GLONASS, BeiDou)
- Miniature size and weight with low power consumption
- Embedded, omnidirectional and wideband antenna
- Industry leading 167 dBm navigation sensitivity
- Optional external antenna
- Product variants to meet performance and cost requirements
| Form factor: | CAM |
|---|---|
| Chip: | u-blox M8 |
| GNSS supported: | BeiDou, Galileo, GLONASS, GPS / QZSS |
| GNSS Bands: | L1 |
| GNSS Oscillator: | TCXO |
| Memory: | ROM |
| Antenna Option: | Internal antenna |
| Temperature: | -40 to +85 °C |
| Dimensions: | 14 x 9.6 x 1.95 mm |
| Voltage: | 2.7 - 3.6 VDC |
| UART: | 1 |
| I2C: | 1 |
| SPI: | 1 |
| S/W Features: | Additional LNA, Additional SAW, Built-in sensor, RTC crystal |
