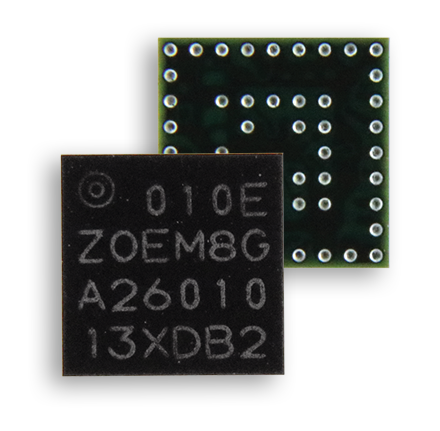

ZOE-M8G-0

u-blox M8 concurrent GNSS SiP*TCXO*ROM*SAW*LNA 1,8V*51-pin S-LGA*4,5x4,5mm*1000 pcs/reel
Manufacturer Item No.:
ZOE-M8G-0
Item number:
ZOE-M8G-0
from 100 pieces 12,80 € / 1 pieces
12,80 € / 1 pieces
In Stock.
plus Shipping and VAT
Usually ships in 1 to 3 days
Add to Favorites

Ultra small GNSS SiPs(System in Package) with superior performance

  • Ultra small size SiP 4.5 mm x 4.5 mm x 1.0 mm
  • Fully integrated and complete solution, reducing total design efforts
  • Ideal for passive antennas, due to built-in SAW and LNA
  • High accuracy thanks to concurrent reception of up to 3 GNSS
  • 167 dBm sensitivity for reliable positioning in challenging conditions
Form factor:ZOE
Chip:u-blox M8
GNSS supported:BeiDou, Galileo, GLONASS, GPS / QZSS
GNSS Bands:L1
GNSS Oscillator:TCXO
Memory:ROM
Antenna Option:Antenna pin
Voltage:1.71 - 1.89 VDC
Temperature:-40 to +85 °C
Dimensions:4.5 x 4.5 x 1 mm
UART:1
I2C:1
SPI:1
S/W Features:Additional LNA, Additional SAW, Built-in sensor, RTC crystal
