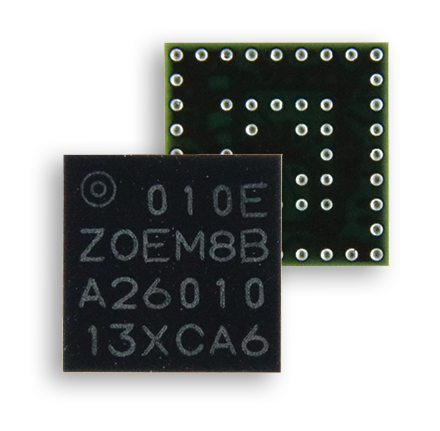

ZOE-M8B-0

u-blox M8 low Power GNSS SiP*TCXO*ROM*SAW*LNA SuperE Mode, 51-pin S-LGA*4,5x4,5mm*1000 pcs/reel
Manufacturer Item No.:
ZOE-M8B-0
Item number:
ZOE-M8B-0
from 100 pieces 13,54 € / 1 pieces
13,54 € / 1 pieces
Item orderable until: 30.04.2025
In Stock.
Item orderable until: 30.04.2025
plus Shipping and VAT
Usually ships in 1 to 3 days
Add to Favorites
  • Ultra small size SiP (System-in-Package) 4.5 x 4.5 x 1.0 mm
  • Fully integrated and complete solution, reducing total design efforts
  • As low as 12 mW power consumption thanks to Super-E mode
  • Ideal for passive antenna, due to built-in SAW and LNA
  • High accuracy thanks to concurrent reception of up to 3 GNSS
  • Pin-to-pin compatible with ZOE-M8G
Form factor:ZOE
Voltage:1.71 - 1.89 VDC
Chip:u-blox M8
GNSS supported:GPS / QZSS, Galileo, BeiDou, GLONASS
GNSS Oscillator:TCXO
Antenna Option:Antenna pin
Temperature:-40 to +85 °C
Dimensions:4.5 x 4.5 x 1 mm
UART:1
I2C:1
SPI:1
S/W Features:Additional LNA, Additional SAW, Built-in sensor, RTC crystal
