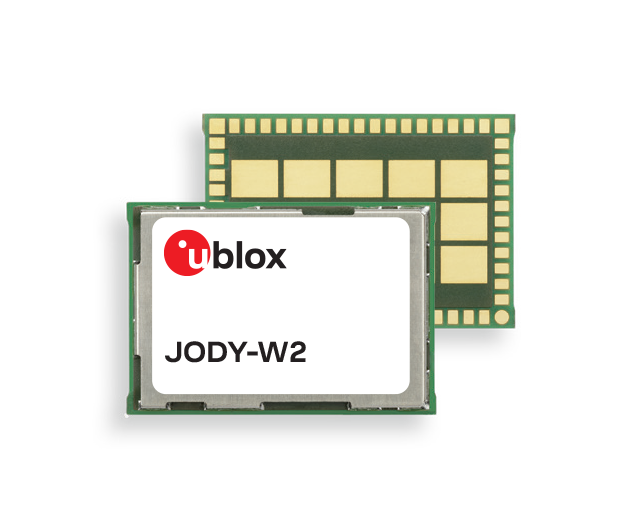

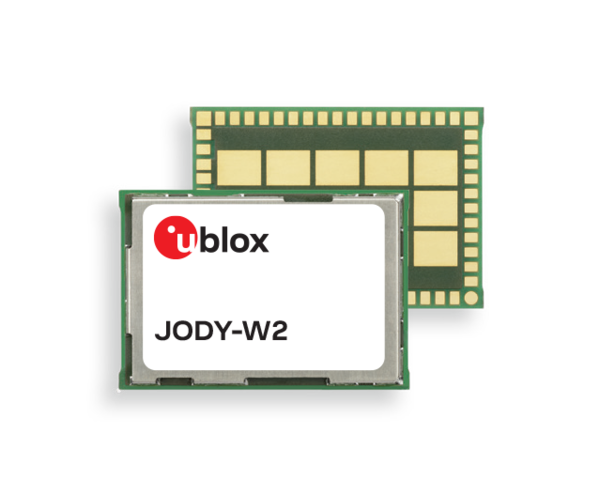

JODY-W263-00B
u-blox*Host-based Multiradio Module (Wi-F +BT/BLE)
802.11ac*SDIO*SISO*BT5*professional
802.11ac*SDIO*SISO*BT5*professional
Manufacturer Item No.:
JODY-W263-00B
Item number:
JODY-W263-00B
from 250 pieces
11,48 € / 1 pieces
Add to Favorites
Smallest, most flexiblemodules supporting Wi-Fi 802.11ac
- Dual band Wi-Fi 2.4 GHz and 5 GHz 802.11a/b/g/n/ac
- Dual-mode Bluetooth 5.2 (Bluetooth BR/EDR and Low Energy)
- Simultaneous access point (AP), station (STA), or Wi-Fi Direct (P2P)
- Optimized for parallel operation of Wi-Fi and Bluetooth
| Form factor: | JODY |
|---|---|
| Chip: | NXP 88W8987 |
| Wi-Fi Standard: | Wi-Fi 5 dual-band |
| Bluetooth Standard: | v5.2 (Bluetooth Low Energy) |
| Antenna Option: | Two pins for separate Bluetooth and Wi-Fi external antennas |
| Type : | host based |
| Software: | Linux/Android |
| Voltage: | 2.8 - 5.5 VDC |
| Temperature: | -40 to +85 °C |
| Dimensions: | 19.8 x 13.8 x 2.5 mm |
| SDIO: | 1 |
| UART: | 1 |
| S/W Features: | Access point, AES hardware support, Bluetooth with enhanced data rate, Factory programmed RF parameters, MAC address stored in module, Supports Linux, WPA3 |
