EVK-JODY-W263-01A
Evaluation kit for JODY-W263 Multiradio Wi-Fi 802.11abgn/ac*BT5*SDIO*automotive
Manufacturer Item No.:
EVK-JODY-W263-01A
Item number:
EVK-JODY-W263-01A
Add to Favorites
- External connector to all host interfaces (SDIO and UART)
- PCM interface accessible via an on-board connector
- GPIO pins accessible via an on-board connector
- Internal dual-band 2.4/5 GHz antennas for Wi-Fi and Bluetooth
- SMA connectors for external antennas
- Module interfaces that are all externally available via the pin headers

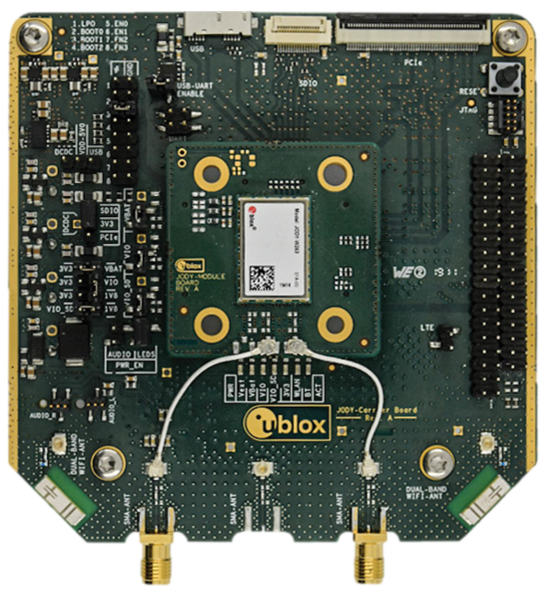

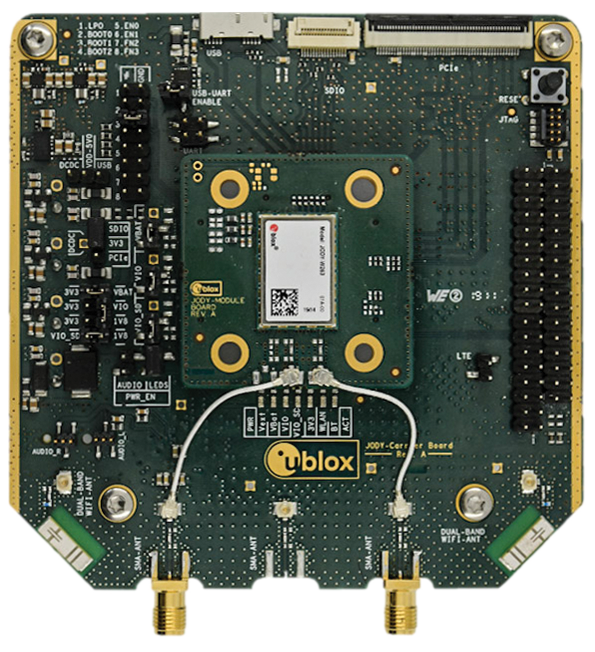

- JODY-W263 evaluation board
- Level shifter with micro SDIO ZIF adapter and flat cable
- Micro SDIO ZIF adapter and flat cable
- Full-size SDIO adapter
- 2 external antennas with U.FL connector
- Type C USB cable
| Form factor: | Evaluation Kit |
|---|---|
| Voltage: | 5 - 24 VDC |
| Chip: | NXP 88W8987 |
| Wi-Fi Standard: | Wi-Fi 5 dual-band |
| Temperature: | -40 to +85 °C |
