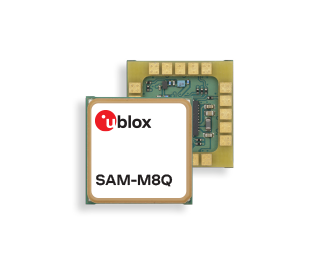

SAM-M8Q-0
u-blox M8 concurrent GNSS LGA Antenna Module; TCXO; SAW; LNA; 2.7-3.3V; 15.5x15.5mm; 250 pcs/reel
For new designs please consider SAM-M10Q-0 Antenna Module.
For new designs please consider SAM-M10Q-0 Antenna Module.
Manufacturer Item No.:
SAM-M8Q-0
Item number:
SAM-M8Q-0
from 1 pieces
21,20 € / 1 pieces
from 10 pieces
18,17 € / 1 pieces
from 50 pieces
16,31 € / 1 pieces
from 100 pieces
12,98 € / 1 pieces
Add to Favorites
Smart antenna module for easy and reliable integration
- Easy to design-in with no RF expertise required
- Consistently strong performance regardless of installation
- High accuracy thanks to concurrent reception of up to 3 GNSS (GPS, Galileo, GLONASS)
- Tiny form factor 15.5 x 15.5 x 6.3 mm
- Embedded wide-band patch antenna
- Surface-mount device, enabling simple and automated manufacturing
| Form factor: | SAM |
|---|---|
| Chip: | u-blox M8 |
| Antenna Option: | Internal patch antenna |
| GNSS Oscillator: | TCXO |
| GNSS supported: | BeiDou, Galileo, GLONASS, GPS / QZSS |
| GNSS Bands: | L1 |
| Dimensions: | 15.5 x 15.5 x 6.3 mm |
| Temperature: | -40 to +85 °C |
| I2C: | 1 |
| SPI: | 1 |
| UART: | 1 |
| USB: | 1 |
| Voltage: | 2.7 - 3.6 VDC |
