- Dualband WiFi & dualmode Bluetooth
- Wi-Fi station / access point
- u-connect software for accelerated time to market
- High speed RMII interface
- Wi-Fi enterprise security
- Global certification
- Dualband WiFi & dualmode Bluetooth
- Wi-Fi station / access point
- u-connect software for accelerated time to market
- High speed RMII interface
- Wi-Fi enterprise security
- Global certification

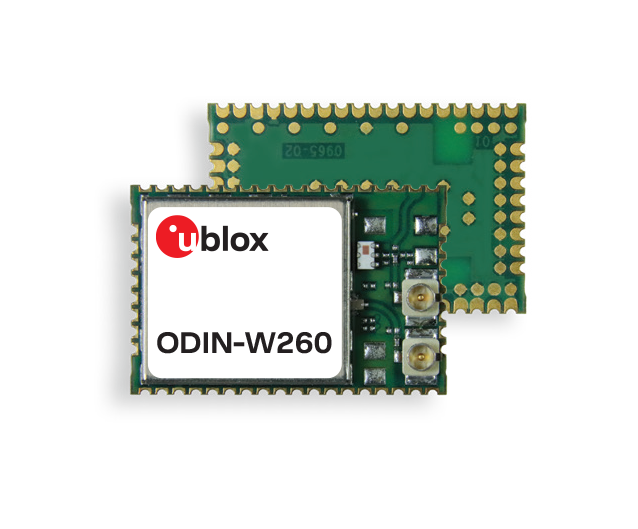

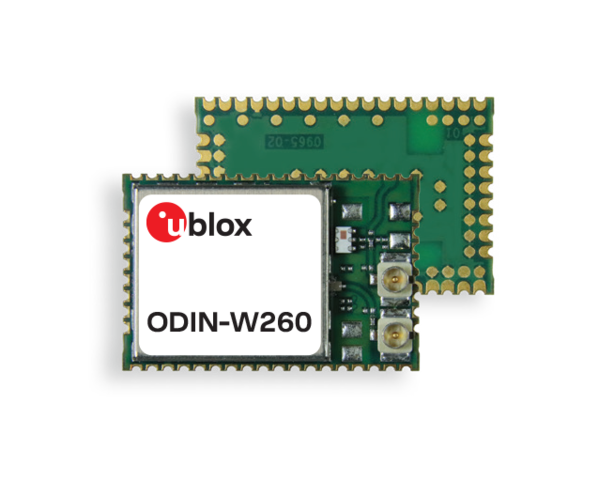

| Form factor: | ODIN |
|---|---|
| Voltage: | 3 - 3.6 VDC |
| Chip: | WL1837 |
| Bluetooth Standard: | v4.2 (Bluetooth Low Energy and BR/EDR) |
| Wi-Fi Standard: | Wi-Fi 4 dual-band |
| max. Range: | 300 m |
| max. Throughput: | 20 Mbit/s |
| Antenna Option: | Connector for external antenna |
| Temperature: | -40 to +85 °C |
| Dimensions: | 22.3 x 14.8 x 3.2 mm |
| UART: | 1 |
| GPIO: | 23 |
| RMII/Ethernet: | 1 |
