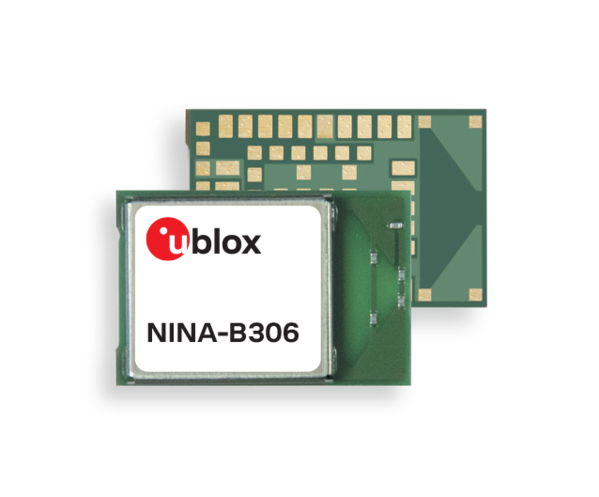

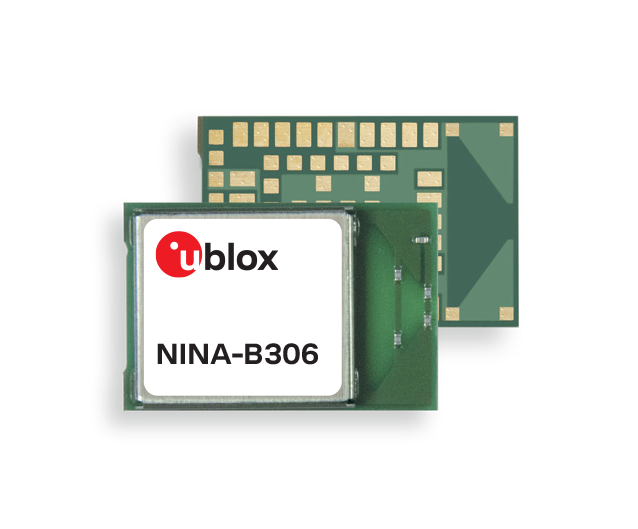

NINA-B306-01B
u-blox*Bluetooth 5.0 LE mod.+BT mesh*int.PCB ant. nRF52840*10x15x2.2mm*Open CPU*w/o low-power XTAL
Manufacturer Item No.:
NINA-B306-01B
Item number:
NINA-B306-01B
Choose Variant:
NINA-B306-01B
from 1 pieces
7,27 € / 1 pieces
from 10 pieces
7,15 € / 1 pieces
from 50 pieces
7,03 € / 1 pieces
from 100 pieces
6,92 € / 1 pieces
from 250 pieces
6,81 € / 1 pieces
Add to Favorites
- Full Bluetooth 5 with high data rate and long range
- Pin compatible with other NINA modules
- Superior security functionality
- Global certification
- Multiple antenna options
- Full Bluetooth 5 with high data rate and long range
- Pin compatible with other NINA modules
- Superior security functionality
- Global certification
- Multiple antenna options
| Form factor: | NINA |
|---|---|
| Chip: | nRF52840 |
| Bluetooth Standard: | v5.0 (Bluetooth Low Energy) |
| Antenna Option: | Internal antenna |
| Type : | stand-alone |
| Software: | openCPU |
| max. Throughput: | 1.4 Mbit/s |
| Voltage: | 1.7 - 3.6 VDC |
| Temperature: | -40 to +85 °C |
| Dimensions: | 15 x 10 x 2.2 mm |
| UART: | 2 |
| USB: | 1 |
| GPIO: | 38 |
| I2S: | 1 |
| TWI: | 2 |
| SPI: | 3 |
| S/W Features: | Bluetooth high speed (LE 2M PHY), Bluetooth mesh, FOTA, Simultaneous GATT server and client, Supports customer applications |
