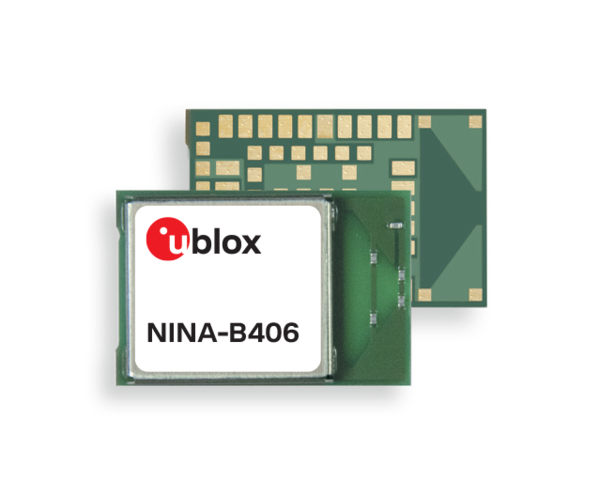

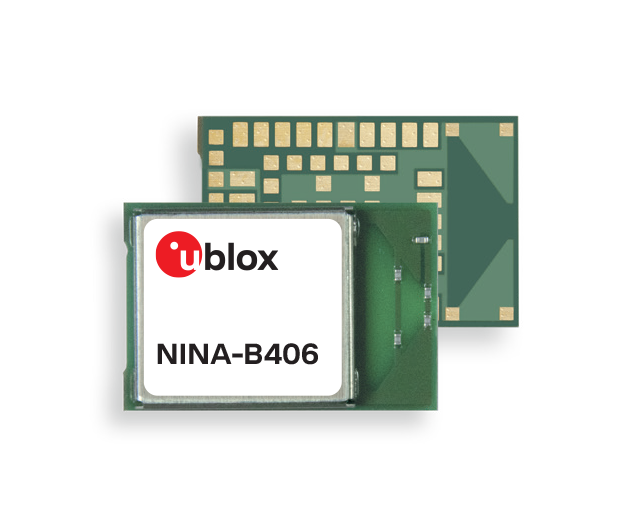

NINA-B406-00B
u-blox*Bluetooth 5.1 LE+BT mesh/Thread/Zigbee int.PCB Antenna*nRF52833*10x15x2.2mm*Open CPU
Manufacturer Item No.:
NINA-B406-00B
Item number:
NINA-B406-00B
from 1 pieces
8,73 € / 1 pieces
from 10 pieces
8,02 € / 1 pieces
from 50 pieces
7,56 € / 1 pieces
from 100 pieces
7,02 € / 1 pieces
Add to Favorites
- Bluetooth 5.1, Bluetooth mesh, Thread, and Zigbee
- Direction finding support for indoor location
- Powerful MCU with open CPU architecture for customized applications
- Extended temperature range up to 105 °C
- Pin compatible with other NINA modules
- Global certification
| Form factor: | NINA |
|---|---|
| Chip: | nRF52833 |
| Bluetooth Standard: | v5.1 (Bluetooth Low Energy) |
| max. Range: | 1400 m |
| max. Throughput: | 1.4 Mbit/s |
| Antenna Option: | Internal antenna |
| Type : | stand-alone |
| Software: | openCPU |
| Temperature: | -40 to +105 °C |
| Voltage: | 1.7 - 3.6 VDC |
| Dimensions: | 15 x 10 x 2.2 mm |
| UART: | 2 |
| USB: | 1 |
| I2C: | 1 |
| GPIO: | 40 |
| I2S: | 1 |
| SPI: | 3 |
| TWI: | 2 |
| S/W Features: | Angle-of-Arrival (AoA), Angle-of-Departure (AoD), Bluetooth high speed (LE 2M PHY), Bluetooth long range (coded PHY), FOTA, Simultaneous GATT server and client, Supports customer applications |
