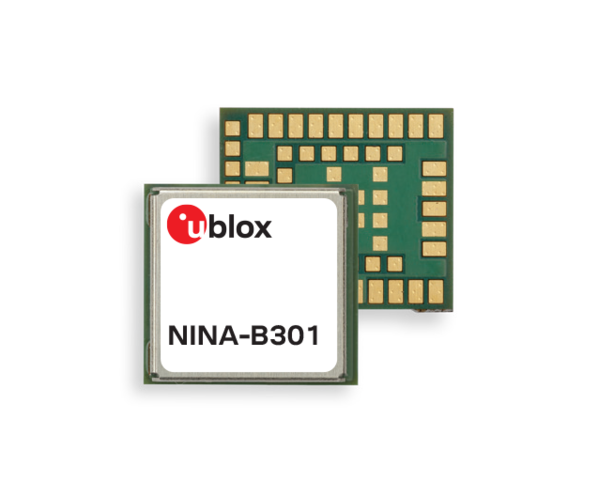

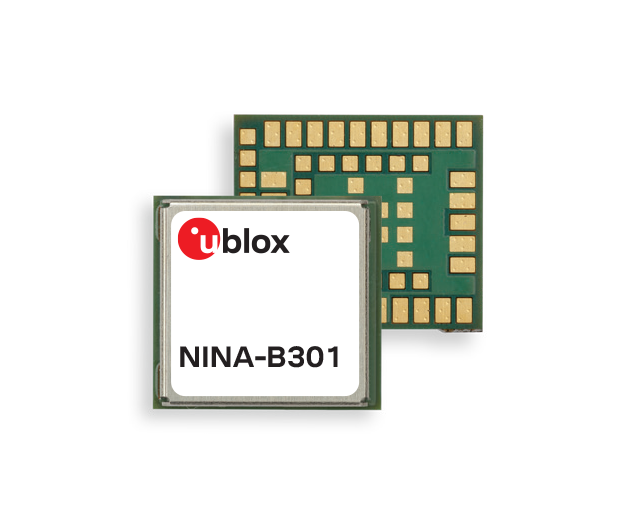

NINA-B301-00B

u-blox*Bluetooth 5.0 LE module+BT mesh*antenna pin 10x15x3.5mm*Open CPU
Manufacturer Item No.:
NINA-B301-00B
Item number:
NINA-B301-00B
from 1 pieces 11,16 € / 1 pieces
from 10 pieces 10,38 € / 1 pieces
from 50 pieces 9,20 € / 1 pieces
from 100 pieces 8,26 € / 1 pieces
11,16 € / 1 pieces
Orderable, delivery time approx. 12 weeks
plus Shipping and VAT
Usually ships in 1 to 3 days
Add to Favorites
  • Full Bluetooth 5 with high data rate and long range
  • Pin compatible with other NINA modules
  • Superior security functionality
  • Global certification
  • Multiple antenna options
Form factor:NINA
Chip:nRF52840
Bluetooth Standard:v5.0 (Bluetooth Low Energy)
Antenna Option:Antenna pin
max. Throughput:1.4 Mbit/s
Type :stand-alone
Software:openCPU
Voltage:1.7 - 3.6 VDC
Temperature:-40 to +85 °C
Dimensions:11.6 x 10 x 2.2 mm
UART:2
USB:1
GPIO:38
I2S:1
SPI:3
TWI:2
S/W Features:Bluetooth high speed (LE 2M PHY), Bluetooth mesh, FOTA, Simultaneous GATT server and client, Supports customer applications
