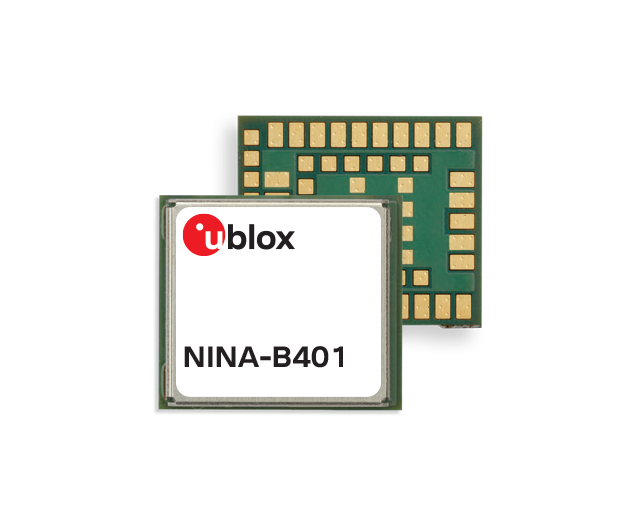

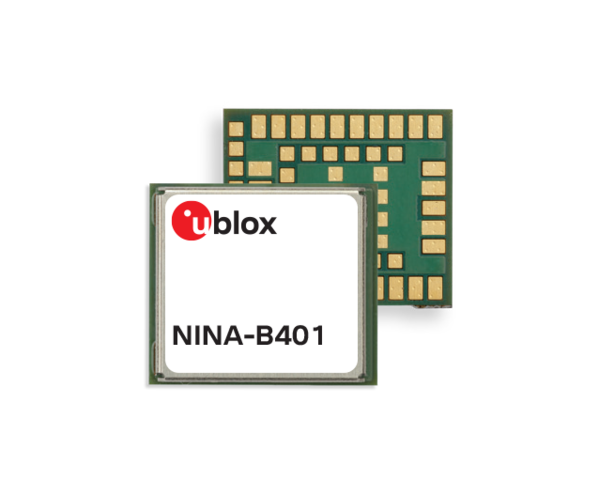

NINA-B401-00B

u-blox*Bluetooth 5.1 LE+BT mesh/Thread/Zigbee w. antenna Pin*nRF52833*10x11.6x2.2mm*Open CPU
Manufacturer Item No.:
NINA-B401-00B
Item number:
NINA-B401-00B
from 1 pieces 8,56 € / 1 pieces
from 10 pieces 7,86 € / 1 pieces
from 50 pieces 7,40 € / 1 pieces
from 100 pieces 6,88 € / 1 pieces
8,56 € / 1 pieces
Orderable, delivery time approx. 12 weeks
plus Shipping and VAT
Usually ships in 1 to 3 days
Add to Favorites
  • Bluetooth 5.1, Bluetooth mesh, Thread, and Zigbee
  • Direction finding support for indoor location
  • Powerful MCU with open CPU architecture for customized applications
  • Extended temperature range up to 105 °C
  • Pin compatible with other NINA modules
  • Global certification
Form factor:NINA
Chip:nRF52833
Bluetooth Standard:v5.1 (Bluetooth Low Energy)
max. Range:1400 m
max. Throughput:1.4 Mbit/s
Antenna Option:Antenna pin
Type :stand-alone
Software:openCPU
Temperature:-40 to +105 °C
Voltage:1.7 - 3.6 VDC
Dimensions:15 x 10 x 2.2 mm
UART:2
USB:1
I2C:1
GPIO:40
I2S:1
SPI:3
TWI:2
S/W Features:Angle-of-Arrival (AoA), Angle-of-Departure (AoD), Bluetooth high speed (LE 2M PHY), Bluetooth long range (coded PHY), FOTA, Simultaneous GATT server and client, Supports customer applications
