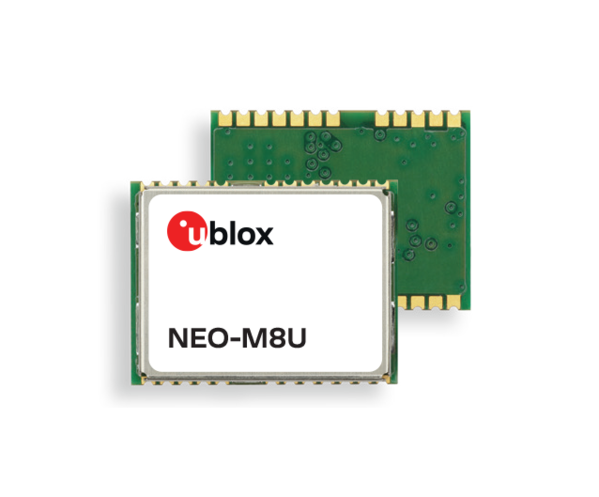

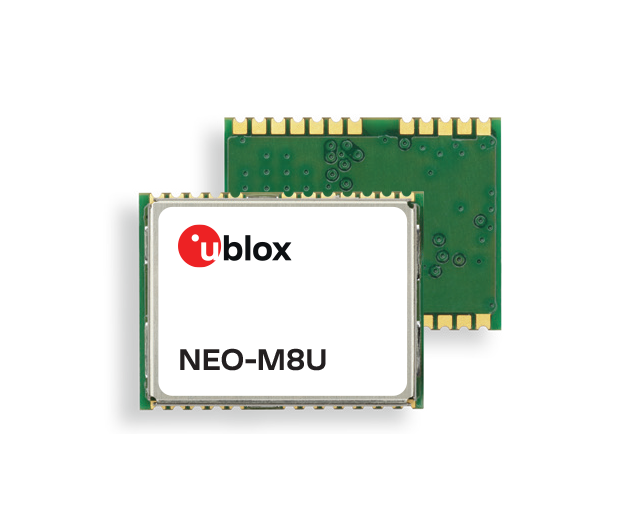

NEO-M8U-06B
u-blox M8*NEO*GNSS Dead Reckoning Module* Untethered*Crystal*Flash*12x16mm*250 pcs/reel
Manufacturer Item No.:
NEO-M8U-06B
Item number:
NEO-M8U-06B
from 1 pieces
30,56 € / 1 pieces
from 10 pieces
25,58 € / 1 pieces
from 50 pieces
23,40 € / 1 pieces
from 100 pieces
21,15 € / 1 pieces
Add to Favorites
Worlds first untethered dead reckoning GNSS solution
- Independent of any electrical connection to the car
- Positioning accuracy in dense cities and covered areas
- Complete positioning solution with integrated 3D sensors
- Compatible with all modules of the NEO family
- Real-time positioning update rate of up to 30 Hz
| Form factor: | NEO |
|---|---|
| Chip: | u-blox M8 |
| GNSS supported: | GPS / QZSS, Galileo, BeiDou, GLONASS |
| GNSS Bands: | L1 |
| GNSS Oscillator: | Crystal |
| Memory: | Flash |
| Temperature: | -40 to +85 °C |
| Dimensions: | 16 x 12.2 x 2.4 mm |
| Voltage: | 2.7 - 3.6 VDC |
| UART: | 1 |
| USB: | 1 |
| I2C: | 1 |
| SPI: | 1 |
| S/W Features: | Built-in sensor, Data logging, Programmable flash memory, RTC crystal |
