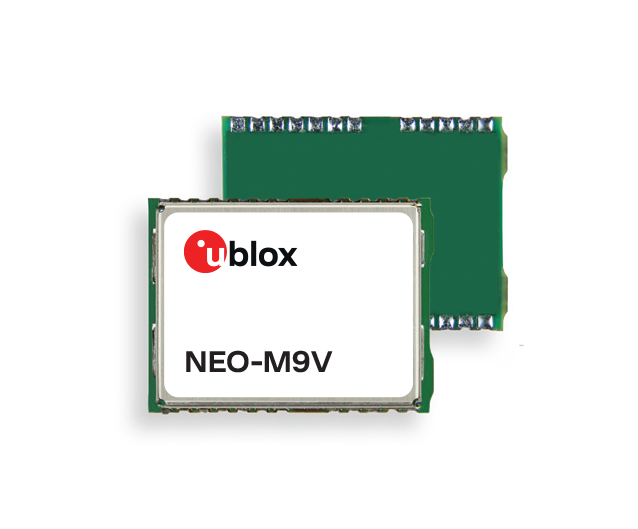

NEO-M9V-20B
u-blox M9*NEO*GNSS*UDR+ADR*onboard SAW+LNA*IMU LCC*12x16mm*250 pcs/reel
Manufacturer Item No.:
NEO-M9V-20B
Item number:
NEO-M9V-20B
from 1 pieces
26,56 € / 1 pieces
from 10 pieces
22,23 € / 1 pieces
from 50 pieces
20,34 € / 1 pieces
from 100 pieces
18,38 € / 1 pieces
Add to Favorites
- Three times better positioning accuracy for a smooth urban navigation experience
- Maximum position availability with 4 GNSS and dead reckoning technology
- Easy-to-use UDR and advanced ADR for high flexibility and fast time to market
- Reduced RF design efforts thanks to integrated SAW/LNA
- Pin-compatible with all NEO modules
| Form factor: | NEO |
|---|---|
| Voltage: | 2.7 - 3.6 VDC |
| Chip: | u-blox M9 |
| GNSS Bands: | L1 |
| GNSS supported: | BeiDou, Galileo, GLONASS, GPS / QZSS |
| GNSS Oscillator: | TCXO |
| Temperature: | -40 to +85 °C |
| Dimensions: | 16 x 12.2 x 2.4 mm |
| UART: | 1 |
| USB: | 1 |
| I2C: | 1 |
| SPI: | 1 |
| S/W Features: | Additional LNA, Additional SAW, Built-in sensor, RTC crystal |
