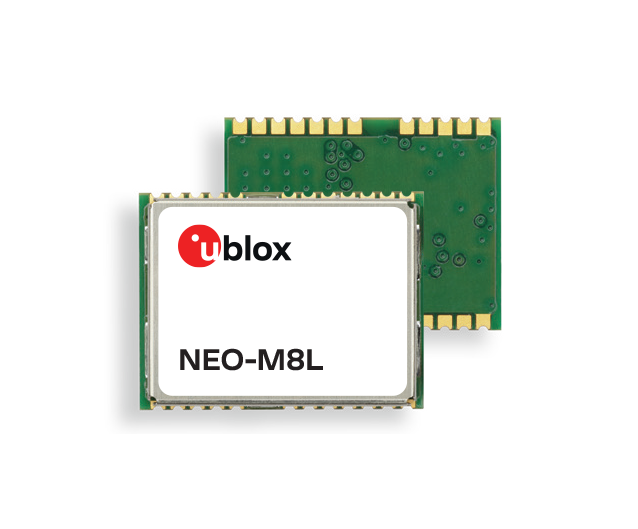

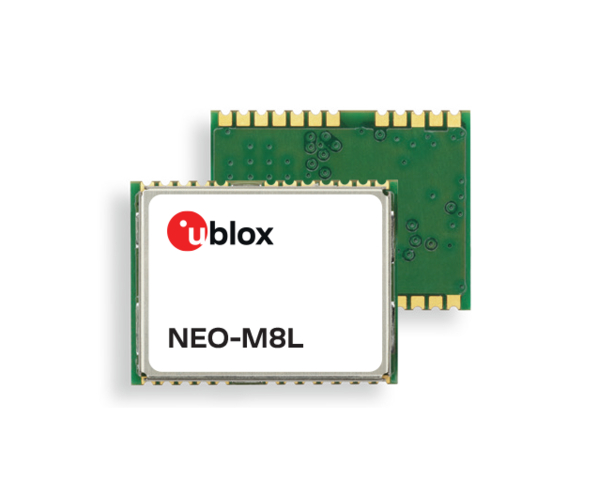

NEO-M8L-06B
u-blox M8*NEO*GNSS Dead Reckoning Module* Crystal*LCC*Flash*12x16mm*250 pcs/reel
Manufacturer Item No.:
NEO-M8L-06B
Item number:
NEO-M8L-06B
from 100 pieces
26,23 € / 1 pieces
Add to Favorites
- Integrated 3D sensors with speed information from vehicle
- Continuous navigation during signal loss
- Automatic configuration of wheel-tick/speed input
- Real-time positioning up to 30 Hz rate
- GPS/QZSS, GLONASS, BeiDou, Galileo
- Zero-PPM program for automotive grade module
| Form factor: | NEO |
|---|---|
| Voltage: | 2.7 - 3.6 VDC |
| Chip: | u-blox M8 |
| GNSS supported: | BeiDou, Galileo, GLONASS, GPS / QZSS |
| GNSS Oscillator: | Crystal |
| Antenna Option: | Antenna pin |
| Temperature: | -40 to +85 °C |
| Dimensions: | 16 x 12.2 x 2.4 mm |
| UART: | 1 |
| USB: | 1 |
| I2C: | 1 |
| SPI: | 1 |
| S/W Features: | Built-in sensor, Data logging, Programmable flash memory, RTC crystal |
