202636-MC01
MICROCRYSTAL*Quartz*20ppm*-40+85°C*6pF*T&R* CM9V-T1A*32.768 KHz*1.6x1.0x0.5 mm* TAQC
Manufacturer Item No.:
202636-MC01
Item number:
Q.032768CM9VT1AA+6T0
Add to Favorites

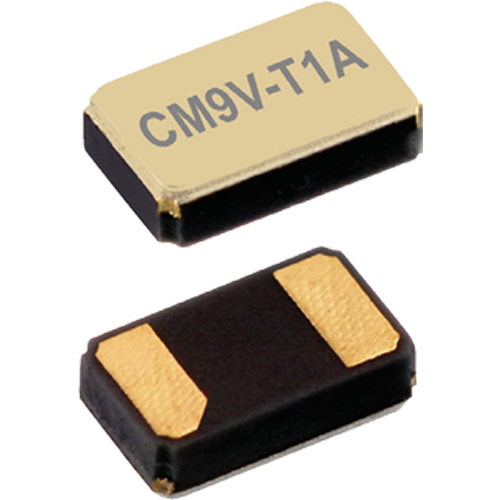

CM9V-T1A is a low frequency SMT Quartz Crystal Unit that incorporates a tuning fork Quartz Crystal Resonator. It operates under vacuum in a hermetically sealed ceramic package with metal lid.
Features
- Ultra small size: 1.6 × 1.0 × 0.50 mm
- Outstanding hermetic sealing with gold-tin preform
- High stability and low aging guaranteed by hermetic sealing
- Available for extended operating temperature range
- Lightweight: 2.4 mg
- High shock and vibration resistant
- 100% Pb-free, RoHS-compliant
- Automotive qualification according to AEC-Q200 available
| Form factor: | 1610 |
|---|---|
| Frequency : | 32.768 kHz |
| Temperature: | -40 to +85 °C |
| Dimensions: | 1.6 x 1.0 x 0.5 mm |
| Tolerance: | ±20 ppm |
| Load Capacitance : | 6 pF |
| Type : | kHz Quartz |
