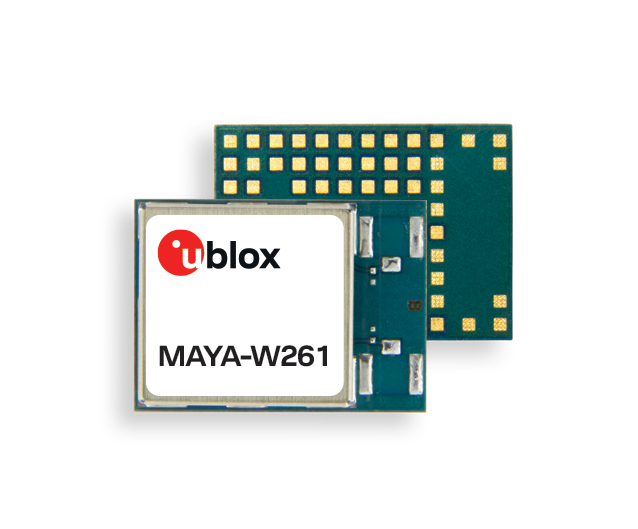

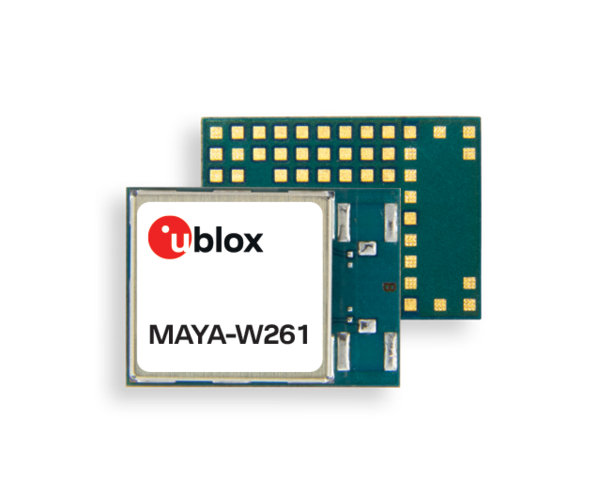

MAYA-W261-00B

u-blox*Host-based Multiradio Module*Wi-Fi 6+BLE5.2
2x ant. pins (WiFi/BT)*10.4x14.3x1.9mm*NXP IW611
Manufacturer Item No.:
MAYA-W261-00B
Item number:
MAYA-W261-00B
from 1 pieces 15,51 € / 1 pieces
from 10 pieces 14,54 € / 1 pieces
from 50 pieces 13,96 € / 1 pieces
from 100 pieces 12,69 € / 1 pieces
15,51 € / 1 pieces
In Stock.
plus Shipping and VAT
Usually ships in 1 to 3 days
Add to Favorites

Host-based Wi-Fi 6, Bluetooth 5.2, and 802.15.4 modules for the IoT



Small, low-power, secure tri-radio modules for IoT applications

  • Wi-Fi 6 dual-band 2.4 and 5 GHz with up to 600 Mbit/s throughput
  • Operation modes: Access-point, station, Wi-Fi direct (combinations)
  • Dual-mode Bluetooth classic and Bluetooth Low Energy 5.3, including LE Audio
  • 802.15.4 radio supporting Thread and Zigbee
  • Variants with PCB-antenna, U.FL connectors, and antenna pins
  • Supports antenna diversity
  • Secure boot and secure OTP
Form factor:MAYA
Wi-Fi Standard:WI-FI 6 DB
Bluetooth Standard:v5.3 (Bluetooth Low Energy)
Type :host based
Chip:NXP IW611
Software:Linux/Android
Antenna Option:2 antenna pins
SDIO:1
UART:1
Voltage:3 - 3.6 VDC
Temperature:-40 to +85 °C
Dimensions:14.3 x 10.4 x 2.5 mm
S/W Features:Factory programmed MAC address(es), Wi-Fi direct, WPA3
