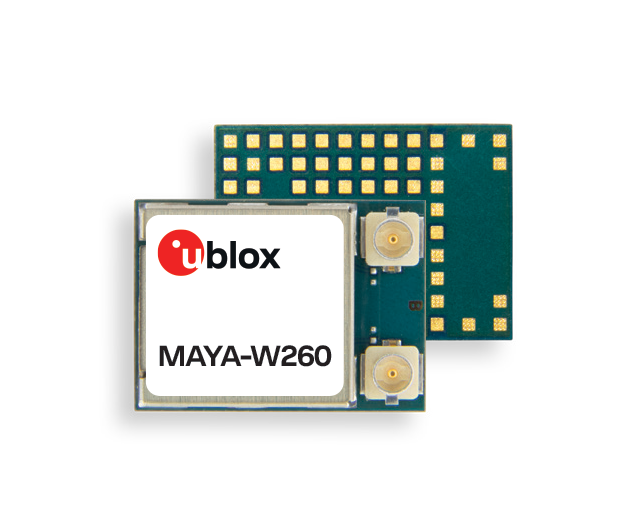

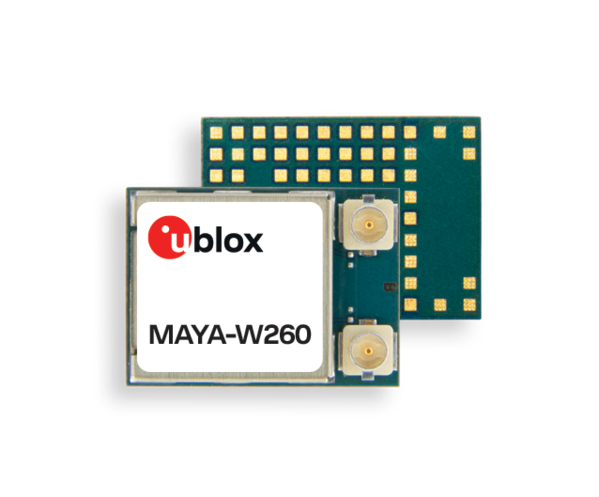

MAYA-W260-00B
u-blox* Host-based Multiradio Module * Wi-Fi 6 + BLE5.3
2x U.FL connect.*10.4x14.3x1.9mm*NXP IW611
2x U.FL connect.*10.4x14.3x1.9mm*NXP IW611
Manufacturer Item No.:
MAYA-W260-00B
Item number:
MAYA-W260-00B
from 1 pieces
11,71 € / 1 pieces
from 10 pieces
11,52 € / 1 pieces
from 50 pieces
11,34 € / 1 pieces
from 100 pieces
11,16 € / 1 pieces
Add to Favorites
Host-based Wi-Fi 6, Bluetooth 5.2, and 802.15.4 modules for the IoT
Small, low-power, secure tri-radio modules for IoT applications
- Wi-Fi 6 dual-band 2.4 and 5 GHz with up to 600 Mbit/s throughput
- Operation modes: Access-point, station, Wi-Fi direct (combinations)
- Dual-mode Bluetooth classic and Bluetooth Low Energy 5.3, including LE Audio
- 802.15.4 radio supporting Thread and Zigbee
- Variants with PCB-antenna, U.FL connectors, and antenna pins
- Supports antenna diversity
- Secure boot and secure OTP
| Form factor: | MAYA |
|---|---|
| Wi-Fi Standard: | WI-FI 6 DB |
| Bluetooth Standard: | v5.3 (Bluetooth Low Energy) |
| Type : | host based |
| Chip: | NXP IW611 |
| Antenna Option: | 2 U.FL connectors |
| SDIO: | 1 |
| UART: | 1 |
| Software: | Linux/Android |
| Voltage: | 3 - 3.6 VDC |
| Temperature: | -40 to +85 °C |
| Dimensions: | 14.3 x 10.4 x 2.5 mm |
| S/W Features: | Factory programmed MAC address(es), Wi-Fi direct, WPA3 |
