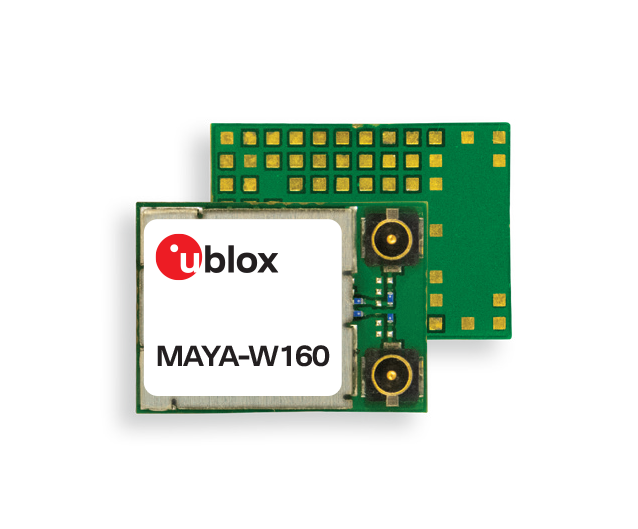

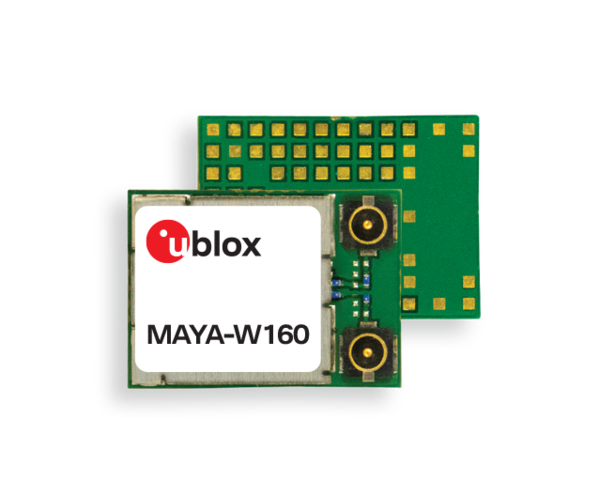

MAYA-W160-00B
u-blox*Host-based Multiradio Module*Wi-Fi 4 + BLE5 802.11a/b/g/n*2xU.FL connector*professional
Manufacturer Item No.:
MAYA-W160-00B
Item number:
MAYA-W160-00B
from 1 pieces
11,58 € / 1 pieces
from 10 pieces
10,85 € / 1 pieces
from 50 pieces
10,42 € / 1 pieces
from 100 pieces
9,47 € / 1 pieces
Add to Favorites
- Wi-Fi 4 (802.11a/b/g/n) dual-band 2.4 and 5 GHz
- Operation modes: Access-point, Station, Wi-Fi direct (combinations)
- Dual-mode Bluetooth classic and full-featured Bluetooth Low Energy 5.2
- Support for long range Bluetooth Low Energy
- Variants with PCB-antenna, U.FL connectors, and antenna pins
| Form factor: | MAYA |
|---|---|
| Chip: | NXP IW416 |
| Wi-Fi Standard: | Wi-Fi 4 dual-band |
| Bluetooth Standard: | v5.2 (Bluetooth Low Energy) |
| Antenna Option: | 2 U.FL connectors |
| Type : | host based |
| Software: | Linux/Android |
| Temperature: | -40 to +85 °C |
| Voltage: | 3 - 3.6 VDC |
| Dimensions: | 14.3 x 10.4 x 2.5 mm |
| UART: | 1 |
| SDIO: | 1 |
| S/W Features: | Factory programmed MAC address(es), Wi-Fi direct, WPA3 |
