M2-MAYA-W161-10C

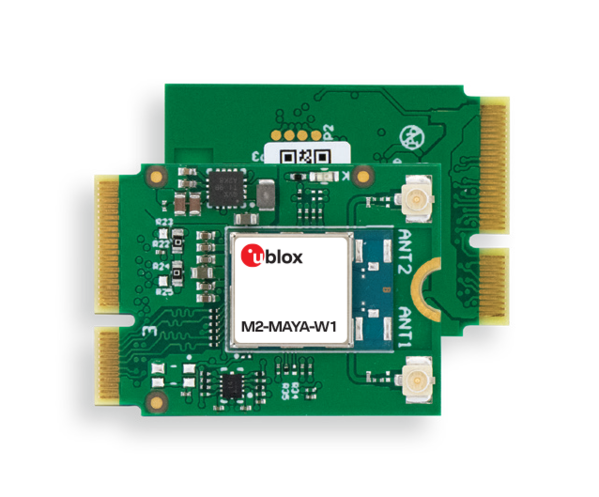

u-blox*M.2 Card with MAYA-W161 mod.*Wi-Fi4/Bluetooth 5
802.11n dual-band*M.2 Type 2230 Key E
embedded antennas included in the box
802.11n dual-band*M.2 Type 2230 Key E
embedded antennas included in the box
Manufacturer Item No.:
M2-MAYA-W161-10C
Item number:
M2-MAYA-W161-10C
Choose Variant:
M2-MAYA-W161-10C - Single
Add to Favorites
Modules supporting IEEE 802.11a/b/g/n and Bluetooth/Bluetooth Low Energy 5.2
- M.2 Type 2230 Key E form factor
- Dual band Wi-Fi 2.4 GHz and 5 GHz 802.11a/b/g/n
- Dual-mode Bluetooth 5.2 (Bluetooth Classic and Low Energy)
- Operation modes: Access point, Station, Wi-Fi Direct and combinations
- Two variants: PCB antenna and U.FL antenna connectors
- Compatible with NXP i.MX evaluation and development boards
| Form factor: | M.2 |
|---|---|
| Chip: | NXP IW416 |
| Wi-Fi Standard: | Wi-Fi 4 dual-band |
| Bluetooth Standard: | v5.2 (Bluetooth Low Energy) |
| Antenna Option: | 2 U.FL connectors |
| Type : | host based |
| Software: | Linux/Android |
| Temperature: | -40 to +85 °C |
| Voltage: | 3 - 3.6 VDC |
| Dimensions: | 22 x 30 x 4.2 mm |
| SDIO: | 1 |
| UART: | 1 |
| S/W Features: | Factory programmed MAC address(es), Wi-Fi direct, WPA3 |
