LVIV-B2 series

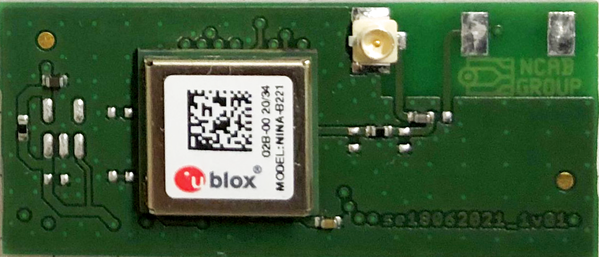

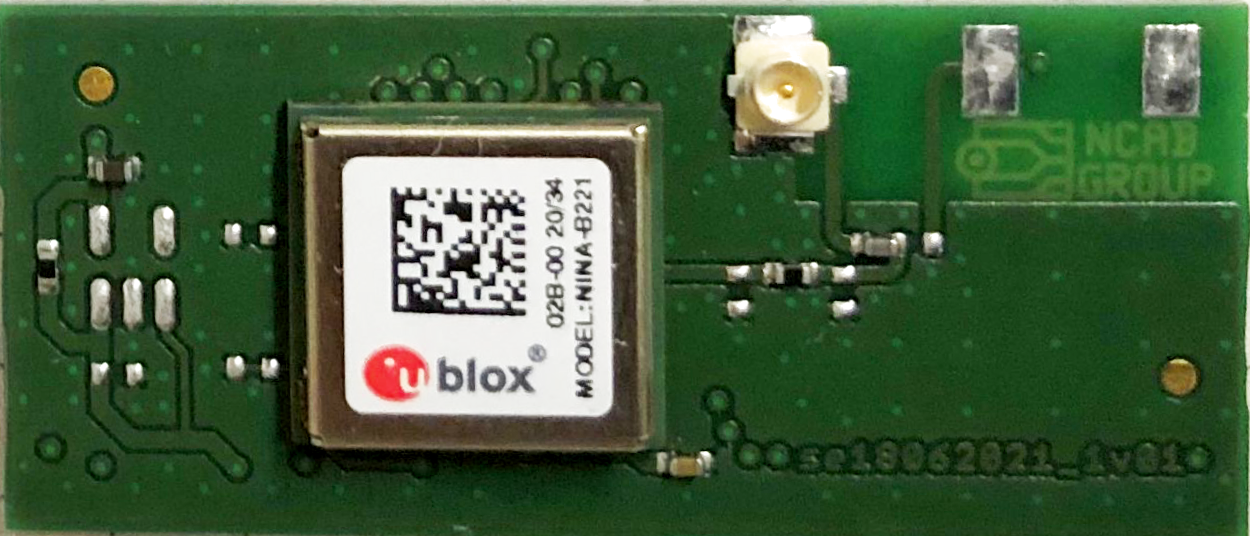

The LVIV-B2 module is designed to offer an electrical and mechanical replacement for a u-blox OBS421. It utilizes the same soldering footprint and antenna placement.Based on the u-blox NINA-B2 module, the LVIV-B2 inherit the same AT Command set which is different to OBS421.
S/W adoption is mandatory.
LVIV-B2 is meant as a replacement to prolong lifespan of an existing OBS418/419/421 design but should not be used for new design.
The LVIV-B2 is RED, FCC and ISED pre-certified. Further approvals can be discussed.
Features
- Internal or external Antenna option
- Electrical and mechanical compatible
with OBS418/419/421 when using the soldering option - NINA-B2 based to provide Bluetooth 4.2 + LE
