SE-NOBS-B2I-B3
SE*LVIV-B2*BT-module*int.antenna*3.0-3.6VDC
interface voltage = supply voltage*16x36x3.4mm
interface voltage = supply voltage*16x36x3.4mm
Manufacturer Item No.:
SE-NOBS-B2I-B3
Item number:
SE-NOBS-B2I-B3
Choose Variant:
LVIV-B2 integrated antenna
Add to Favorites
LVIV-B2 series

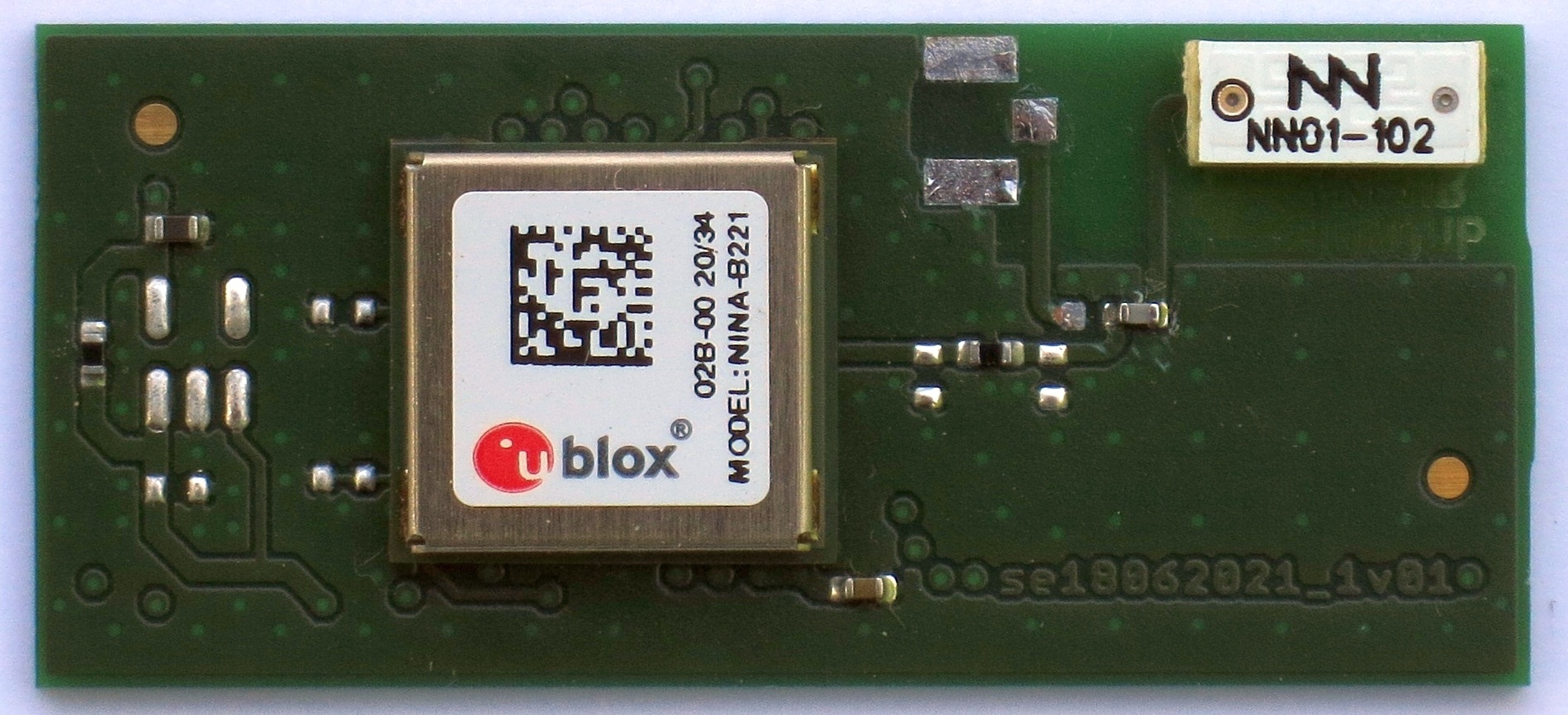

The LVIV-B2 module is designed to offer an electrical and mechanical replacement for a u-blox OBS421. It utilizes the same soldering footprint and antenna placement.Based on the u-blox NINA-B2 module, the LVIV-B2 inherit the same AT Command set which is different to OBS421.
S/W adoption is mandatory.
LVIV-B2 is meant as a replacement to prolong lifespan of an existing OBS418/419/421 design but should not be used for new design.
The LVIV-B2 is RED, FCC and ISED pre-certified. Further approvals can be discussed.
Features
- Internal or external Antenna option
- Electrical and mechanical compatible
with OBS418/419/421 when using the soldering option - NINA-B2 based to provide Bluetooth 4.2 + LE
