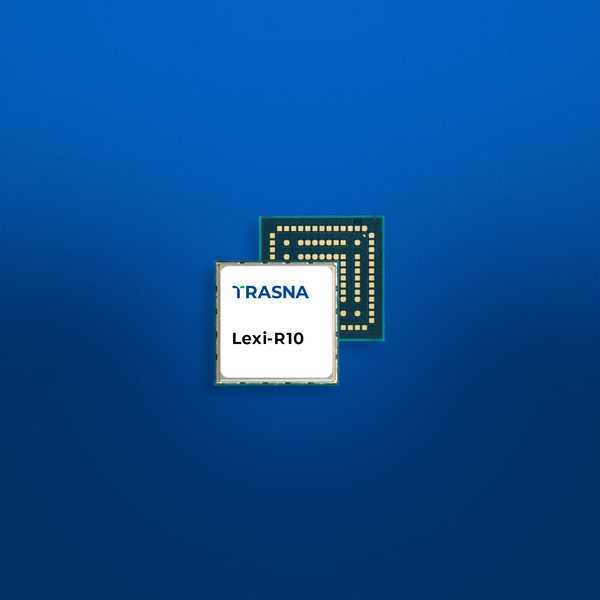

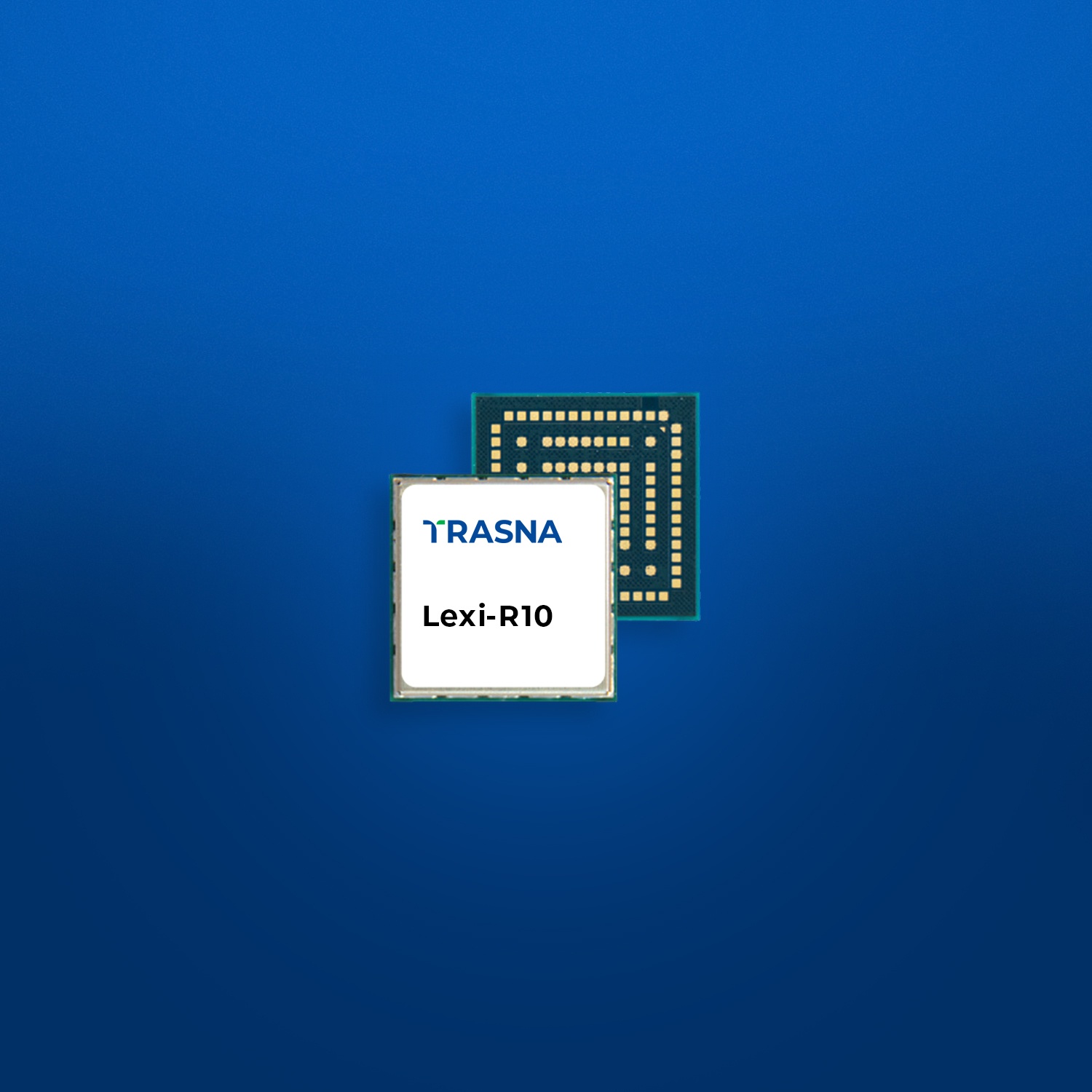

LEXI-R10011D-01B

World's smallest LTE Cat 1bis modules, ideal for size-constrained devices

LEXI-R10 series are the world's smallest LTE Cat 1bis modules in the ultra-small LEXI LGA form factor (16 x 16 mm, 133-pin), featuring medium capacity data connectivity (up to 10 Mbit/s downlink, and up to 5 Mbit/s uplink) with very low energy consumption.

Thanks to connectivity to ubiquitous LTE Cat 1 networks, LEXI-R10 series modules are ideally suited to a wide range of value-oriented applications that require medium data speed and superior coverage. Typical applications are asset tracking, telematics, healthcare, and wearables.


LEXI-R10 series modules support multi-band LTE radio access technology, and come in the following product variants to reduce logistics complexity:

• LEXI-R10001D data-only LTE Cat 1bis module for global use, with a comprehensive set of bands supported, and all relevant regulatory and conformance approvals.
• LEXI-R10011D data-only LTE Cat 1bis module for global use, with the most comprehensive set of bands supported, and all relevant regulatory, conformance, Mobile Network Operator approvals.
• LEXI-R10401D data-only LTE Cat 1bis module, an ideal solution for use in North America region, with relevant supported bands and regulatory, conformance, Mobile Network Operator approvals.
• LEXI-R10801D data-only LTE Cat 1bis module, an ideal solution for use in Europe, Middle East, Africa, Brazil and Asia-Pacific regions, with relevant supported bands and regulatory approvals.

LEXI-R10 series modules are qualified according to proprietary qualification policy based on the AEC-Q104
standard, for operation in harsh environments and in very compact designs.
