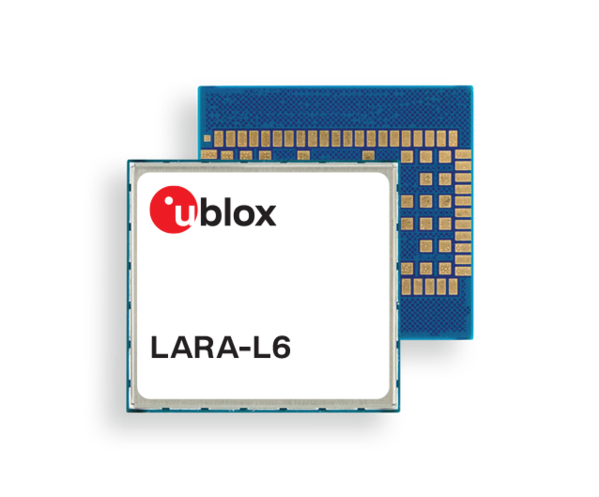

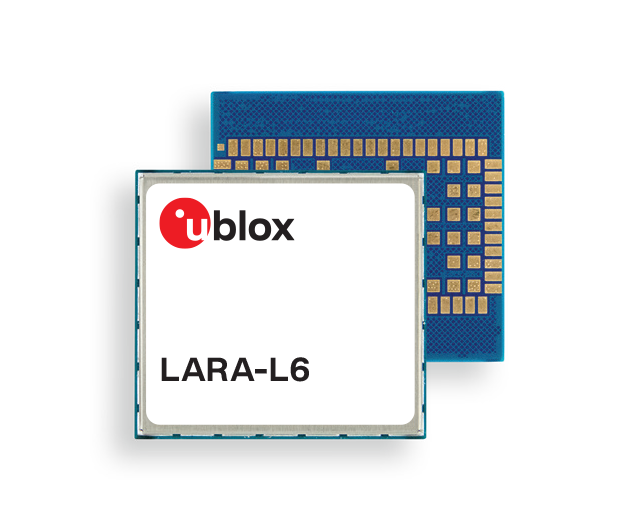

LARA-L6004D-00B
u-blox*LTE Cat.4/3G/GSM-Global module*Data-only LGA*24x26mm*150pcs/reel*Data-only
Use restriction: 4G M2M
IPR coverage: Premium
Please contact sales if you require a different use restriction/coverage option.
Use restriction: 4G M2M
IPR coverage: Premium
Please contact sales if you require a different use restriction/coverage option.
Manufacturer Item No.:
LARA-L6004D-00B
Item number:
LARA-L6004D-00B
from 1 pieces
91,53 € / 1 pieces
from 10 pieces
68,65 € / 1 pieces
from 50 pieces
52,81 € / 1 pieces
from 100 pieces
47,34 € / 1 pieces
Add to Favorites
- Reduce logistics complexity with two product variants and extensive MNO certifications
- Any region, any band, any technology for simple roaming and deployment anywhere in the world
- Compatibility with LARA-R6 (LTE Cat 1)
- Secure by design to always keep your device running and updated
| Form factor: | LARA |
|---|---|
| Cellular Regions: | Multi-Region |
| Datarate: | Cat 4 (150 Mbit/s DL, 50 Mbit/s UL) |
| LTE Bands: | 1, 12, 13, 18, 19, 2, 20, 26, 28, 3, 38, 39, 4, 40, 41, 5, 7, 8 |
| UMTS Bands: | 1900, 2100, 850, 900 |
| GSM Bands: | Quad-band |
| Temperature: | -40 to +85 °C |
| Voltage: | 3.3 - 4.5 VDC |
| Dimensions: | 26 x 24 x 2.6 mm |
| UART: | 2 |
| USB: | 1 |
| I2C: | 1 |
| GPIO: | 9 |
| S/W Features: | Antenna detection, FOTA, FW update via serial interface, Jamming detection, Last gasp, Power save mode, Rx diversity, Secure boot, uFOTA |
