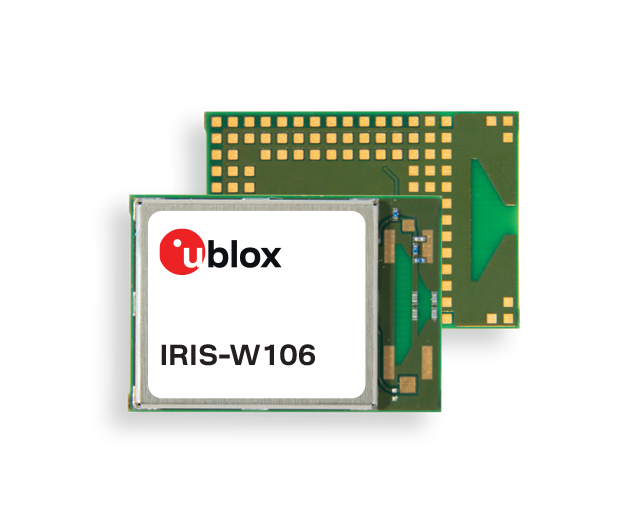

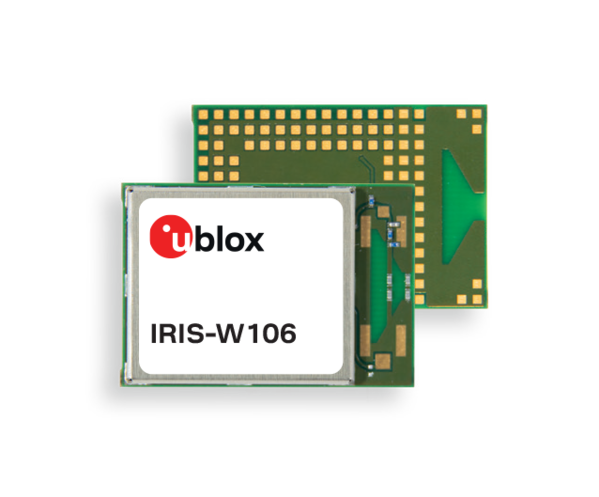

IRIS-W106-00B
u-blox*multiradio Wi-Fi 6, BT LE & Thread module
stand-alone*OpenCPU*PCB-ant.*14.6x20.9x2.1mm
stand-alone*OpenCPU*PCB-ant.*14.6x20.9x2.1mm
Manufacturer Item No.:
IRIS-W106-00B
Item number:
IRIS-W106-00B
from 1 pieces
13,00 € / 1 pieces
from 10 pieces
12,68 € / 1 pieces
from 50 pieces
12,58 € / 1 pieces
from 100 pieces
12,38 € / 1 pieces
Add to Favorites
Tri-radio wireless MCU module
- Dual-band Wi-Fi 6, Bluetooth Low Energy 5.3 and Thread
- Powerful MCU for advanced customer applications
- Full set of enhanced security features
- Matter over Wi-Fi or Thread
- PCB antenna or external antenna options
- Global certification
| Form factor: | IRIS |
|---|---|
| Chip: | NXP RW612 |
| Wi-Fi Standard: | WI-FI 6 DB |
| Bluetooth Standard: | v5.3 (Bluetooth Low Energy) |
| Flash: | 8192 kByte |
| RAM: | 1.2 MBytes |
| Type : | stand-alone |
| Software: | openCPU |
| Antenna Option: | Embedded PCB antenna |
| UART: | 5 |
| RMII/Ethernet: | 1 |
| I2C: | 5 |
| SDIO: | 1 |
| USB: | 1 |
| SPI: | 5 |
| GPIO: | 64 |
| Voltage: | 3.15 - 3.45 VDC |
| Temperature: | -40 to +85 °C |
| Dimensions: | 14.6 x 20.9 x 2.1 mm |
