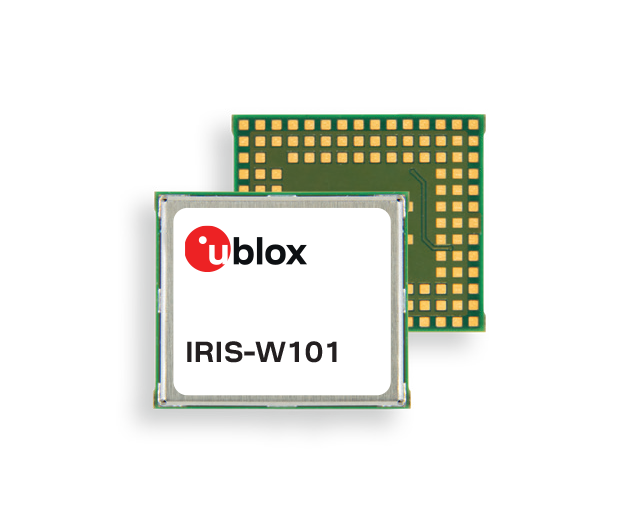

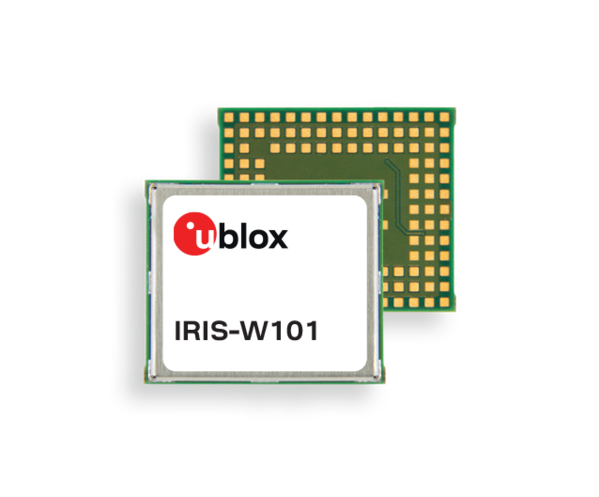

IRIS-W101-00B

u-blox*multiradio Wi-Fi 6, BT LE & Thread module* stand-alone*OpenCPU*ant. pin*14.6x16.8x2.1mm
Manufacturer Item No.:
IRIS-W101-00B
Item number:
IRIS-W101-00B
from 1 pieces 16,34 € / 1 pieces
from 10 pieces 14,85 € / 1 pieces
from 50 pieces 13,62 € / 1 pieces
from 100 pieces 12,97 € / 1 pieces
16,34 € / 1 pieces
Orderable, delivery time approx. 12 weeks
plus Shipping and VAT
Usually ships in 1 to 3 days
Add to Favorites

Tri-radio wireless MCU module

  • Dual-band Wi-Fi 6, Bluetooth Low Energy 5.3 and Thread
  • Powerful MCU for advanced customer applications
  • Full set of enhanced security features
  • Matter over Wi-Fi or Thread
  • PCB antenna or external antenna options
  • Global certification

IRIS-W10 series are small, stand-alone, dual-band Wi-Fi and Bluetooth Low Energy wireless microcontroller unit (MCU) modules. The modules are ideal for users looking to add advanced wireless connectivity to their end products. Several Wi-Fi 6 features improve network efficiency, latency, range, and power consumption compared to earlier Wi-Fi generations. In addition, Bluetooth Low Energy 5.3 and Thread mesh networking protocol make IRIS-W10 suited to many different use cases. The Matter application protocol is supported over Thread, Wi-Fi, and Ethernet, allowing interoperability with various products in a growing ecosystem. The powerful open CPU configuration embeds an Arm® Cortex®-M33 MCU, clocked up to 260 MHz, with 1.2 MB SRAM and 8 MB flash. With several peripheral interfaces (UART, USB, SPI, SDIO, RMII, QVGA, I2S, I2C, and GPIOs), IRIS-W10 modules can operate completely stand-alone, hosting advanced software applications for many different use cases. The IRIS-W10 series includes hardware security features like secure boot with a hardware root of trust, Arm® TrustZone® processor security technology, Edgelock hardware crypto engine, encrypted flash, and protection of the debug port. The wireless communication can be secured with WPA2/WPA3 authentication, Wi-Fi enterprise security, TLS encryption, HTTPS, and Bluetooth LE secure connection pairing.
Form factor:IRIS
Chip:NXP RW612
Wi-Fi Standard:Wi-Fi 6 dual-band
Bluetooth Standard:v5.3 (Bluetooth Low Energy)
Flash:8192 kByte
RAM:1.2 MBytes
Type :stand-alone
Software:openCPU
max. Range:tbd
Antenna Option:Antenna pin
UART:5
RMII/Ethernet:1
I2C:5
SPI:3
SDIO:1
USB:1
GPIO:64
Voltage:3.15 - 3.45 VDC
Temperature:-40 to +85 °C
Dimensions:14.6 x 16.8 x 2.1 mm
