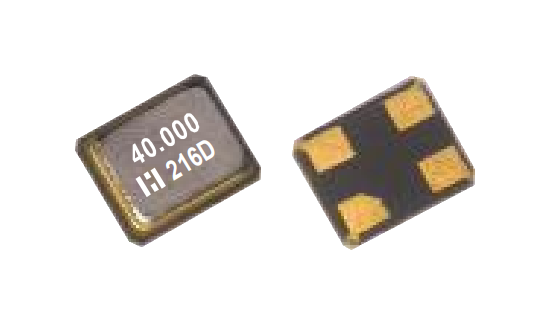

E1SB SERIES

HOSONIC*Quartz*SMD*2.0x1.6x0.5mm*16-96MHz*

This is a DUMMY Part for General Information/Indication Pricing.
Item number:
Q...HCX1SB+
Low availability.
Usually ships in 3 to 5 days
Add to Favorites
Please let us know which configuration you need.
Request Item or send us a mail (timing@spezial.com) with the following specification requirements.
Frequency, Load Capacitance, Frequency Tolerance, Operating Temperature, ESR or Drive Level


SMD Seam Crystal Unit / Standard Speficiations:
  • Package: SMD 2.0x1.6x0.5mm
  • Frequency: 16 – 96.5MHz
  • Frequency Tolerance: ±10ppm, ±15ppm, ±30ppm (at 25°C)
  • Load Capacitance: 6 to 16pF
  • Operating Temperature:-20 +70℃,-30 +85℃
  • ESR:  200Ω, 100Ω, 80Ω, 60Ω, 40Ω (max.) - or on request
  • Drive Level: 50µW (100µW max.) - or on request
