CMX901QT8
Broadband Efficient RF Power Amplifier 28 pin WQFN package / TRAY
Manufacturer Item No.:
CMX901QT8
Item number:
CMX901QT8
Add to Favorites
Product Description

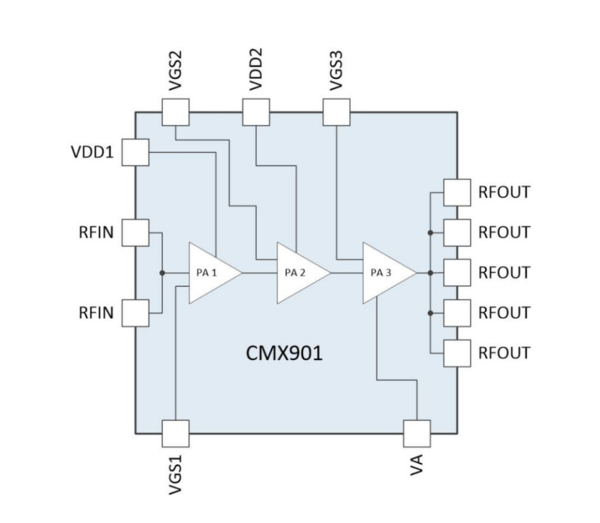

The CMX901 is a three stage high-gain and high efficiency RF power amplifier. The device is ideally suited for use in VHF and UHF frequency bands up to 950MHz.
The first and second stages of the amplifier operate in a class-A and class-AB mode respectively, and the third stage operates in a class-C mode for maximum efficiency.
External components are required to match the device input and output ports to 50 Ohms.
The CMX901 is available in a small footprint 5mm x 5mm, low thermal resistance 28-pin WQFN package making it ideal for small form factor applications such as data modules as well as handheld radio terminals.
Features
- Wide operating frequency range 130MHz to 950MHz
- Typical output power: 2.5W operating at 160MHz 1.8W operating at 435MHz 1.5W operating at 915MHz
- High power gain 40dB
- High power added efficiency up to 60% at VHF
- Single polarity supply voltage 2.5V to 6V
- Small 28 pin WQFN package
| Voltage: | 2.5 to 6.0 VDC |
|---|---|
| Form factor: | 28-pin WQFN |
| Temperature: | -40 to +85 °C |
| Dimensions: | 5.0 x 5.0 x 0.75 mm |
| Packaging: | Tray |
| RF/IF Input: | 130 to 950 MHz |
| Gain: | 39 dB (160 MHz) 42.5 dB (435 MHz) 32 dB (915 MHz) |
| OP Power: | 2.5W (Psat 160 MHz) 1.8W (Psat 435 MHz) 1.5W (Psat 915 MHz) |
| PAE: | 61% (160 MHz) 52% (435 MHz) 42% (915 MHz) |
