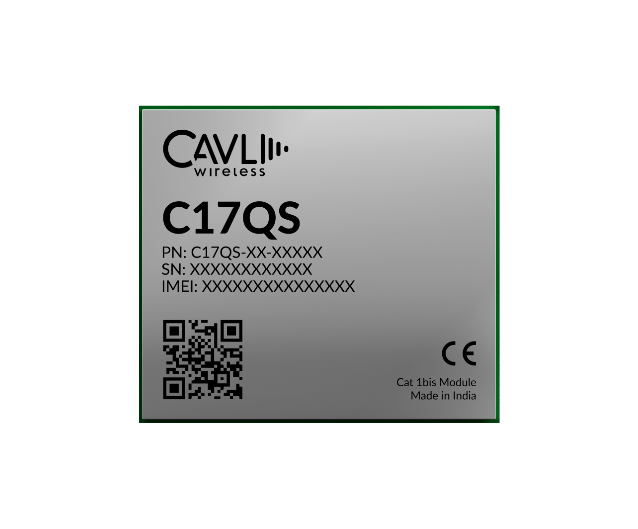

C17QS-WW-GNBN
CAVLI*C17QS*LTE Cat.1bis module*GNSS (L1+L5)
LGA*26.5x22.5x2.3mm*-40/+85°C
LGA*26.5x22.5x2.3mm*-40/+85°C
Manufacturer Item No.:
C17QS-WW-GNBN
Item number:
C17QS-WW-GNBN
Add to Favorites
Cavli C17QS modules use their LTE Cat 1bis technology and optional GNSS tracking capabilities to simplify global connectivity and tracking solutions.
With an optional integrated iSIM under development, C17QS is capable of ensuring remote monitoring and seamless global coverage. The module comes in World wide variant which can be deployed according to customer requirements. The C17QS series, with its power saving and DRx/eDRx modes, ensure prolonged life cycles in both battery powered and externally powered usecases.
The small form-factor and versatile interfacing capabilities ensure that C17QS is ideal for solutions that require great connectivity, tracking capabilities but are heavily constrained by space and power limitations.
With an optional integrated iSIM under development, C17QS is capable of ensuring remote monitoring and seamless global coverage. The module comes in World wide variant which can be deployed according to customer requirements. The C17QS series, with its power saving and DRx/eDRx modes, ensure prolonged life cycles in both battery powered and externally powered usecases.
The small form-factor and versatile interfacing capabilities ensure that C17QS is ideal for solutions that require great connectivity, tracking capabilities but are heavily constrained by space and power limitations.
Features
- Global and local versions
- Wi-Fi scanning support
- Power Saving Modes
- Dual-Band (L1/L5) GNSS Support
- iSIM Support (in progress)
| Cellular Regions: | Multi-Region |
|---|---|
| Datarate: | Cat. 1bis (10 Mbit/s DL, 5 Mbit/s UL) |
| LTE Bands: | 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 18, 19, 20, 25, 26, 28, 34, 38, 39, 40, 41, 66, 71 (opt.) |
| Wi-Fi Scan: | Yes |
| GNSS supported: | GPS / QZSS, Galileo, GLONASS, Beidou, NavIC |
| GNSS Bands: | L1 / L5 |
| Flash: | 8192 kByte |
| RAM: | 2 MB |
| UART: | 3 |
| USB: | 1 |
| I2C: | 1 |
| I2S: | 1 |
| SPI: | 1 |
| GPIO: | 4 |
| Voltage: | 3.4 - 4.2 VDC |
| Temperature: | -40 to +85°C |
| Dimensions: | 26.5 x 22.5 x 2.3 mm |
| S/W Features: | iSIM Support (in progress) |
