403-51026-51

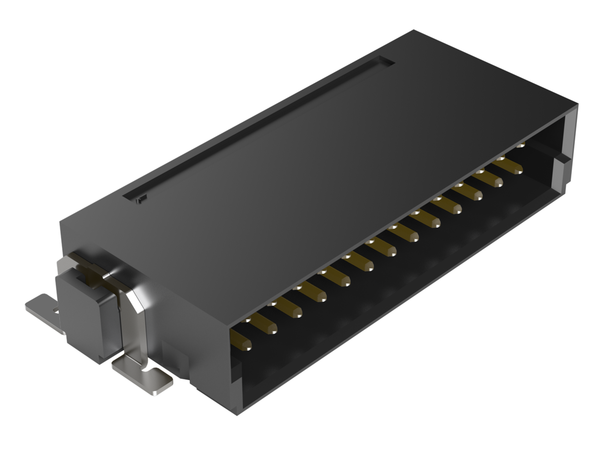

One27 Male angled
Manufacturer Item No.:
403-51026-51
Item number:
SE-65-4035102651
from 970 pieces
1,42 € / 1 pieces
from 1940 pieces
1,33 € / 1 pieces
from 2910 pieces
1,25 € / 1 pieces
from 4850 pieces
1,11 € / 1 pieces
from 9700 pieces
1,07 € / 1 pieces
Add to Favorites
| Series: | Mezzanine board-to-board |
|---|---|
| Construction Form: | 0 |
| Type : | Male |
| Mounting Angle: | Angled |
| No. Of Contacts: | 26 |
| Operational Current: | 1.4 A at 20°C (50 pins) (IEC 60512-5-2) |
| Pitch: | 1.27 mm |
| Termination Technology: | SMT |
| Temperature: | -55°C to +125°C |
| Contact Material: | Copper alloy |
| Plating: | Au over NiP over Ni |
| Insulator Material: | LCP, UL 94 V-0 |
| CTI value / IEC 60112: | 175 |
| Mating Force: | 0.5 N per Pin |
| Separating Force : | 0.1 N |
| Mating Cycles: | Performance level 1: 500 |
| Resistance: | <= 25 mOhm (IEC 60512-2-1) |
| Clearance: | min. 0.4 mm |
| Insulation Resistance: | >= 10 GOhm (IEC 60512-3-1) |
| Test Voltage: | 500 VAC (IEC 60512-4-1) |
| Soldering Temperature: | 20 - 40 s at 260°C (JEDEC J-STD-020E) |
| Assembly Option: | Pick and Place |
| Vibration: | 10 - 2000 Hz, 20g (IEC 60512-6-4) |
| Shock: | 50g, 11 ms (IEC 60512-6-3) |
