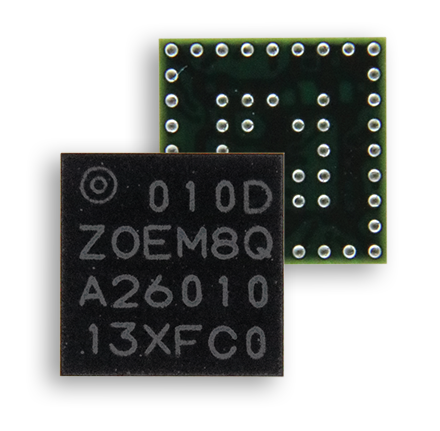

ZOE-M8Q-0
u-blox M8 concurrent GNSS SiP*TCXO*ROM*SAW*LNA 3,0V*51-pin S-LGA*4,5x4,5mm*1000 pcs/reel
Manufacturer Item No.:
ZOE-M8Q-0
Item number:
ZOE-M8Q-0
from 100 pieces
12,80 € / 1 pieces
Add to Favorites
Ultra small GNSS SiPs(System in Package) with superior performance
- Ultra small size SiP 4.5 mm x 4.5 mm x 1.0 mm
- Fully integrated and complete solution, reducing total design efforts
- Ideal for passive antennas, due to built-in SAW and LNA
- High accuracy thanks to concurrent reception of up to 3 GNSS
- 167 dBm sensitivity for reliable positioning in challenging conditions
| Form factor: | ZOE |
|---|---|
| Chip: | u-blox M8 |
| GNSS supported: | BeiDou, Galileo, GLONASS, GPS / QZSS |
| GNSS Bands: | L1 |
| GNSS Oscillator: | TCXO |
| Memory: | ROM |
| Antenna Option: | Antenna pin |
| Temperature: | -40 to +85 °C |
| Dimensions: | 4.5 x 4.5 x 1 mm |
| Voltage: | 2.7 - 3.6 VDC |
| UART: | 1 |
| I2C: | 1 |
| SPI: | 1 |
| S/W Features: | Additional LNA, Additional SAW, Built-in sensor, RTC crystal |
