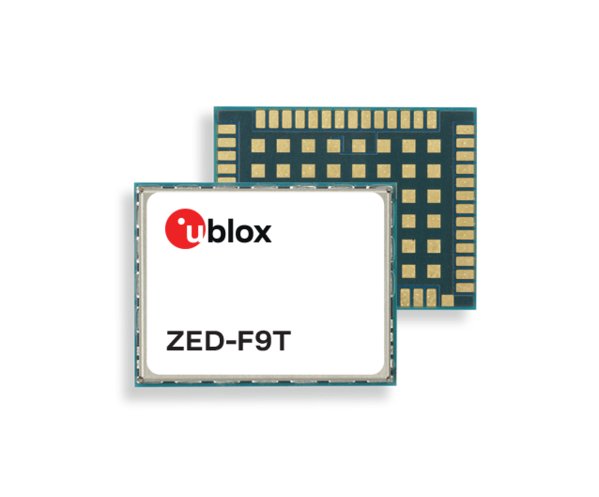

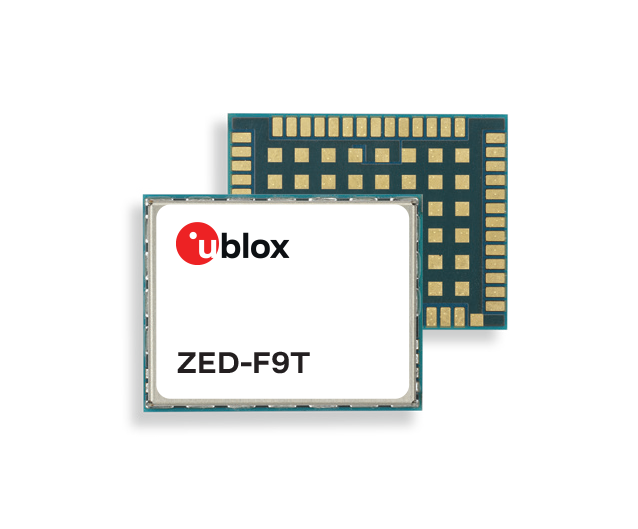

ZED-F9T-10B

u-blox*F9 high accuracy timing module*250 pcs/reel multi-band(L1/L5)*LGA*17x22
Manufacturer Item No.:
ZED-F9T-10B
Item number:
ZED-F9T-10B
from 1 pieces 176,58 € / 1 pieces
from 10 pieces 158,72 € / 1 pieces
176,58 € / 1 pieces
Low availability.
plus Shipping and VAT
Usually ships in 3 to 5 days
Add to Favorites
  • Meets the most stringent 5G timing requirements
  • Ideal for global deployments due to GPS, BeiDou, Galileo, and GLONASS reception
  • Unaffected by ionospheric errors
  • Differential timing mode for highly accurate local timing
  • Built-in security for highest robustness against malicious attacks
Form factor:ZED
Chip:u-blox F9
GNSS supported:BeiDou, Galileo, GLONASS, GPS / QZSS
GNSS Bands:L1 / L5
GNSS Oscillator:TCXO
Memory:Flash
Antenna Option:Antenna pin
Temperature:-40 to +85 °C
Dimensions:22 x 17 x 2.4 mm
Voltage:2.7 - 3.6 VDC
UART:2
USB:1
I2C:1
SPI:1
S/W Features:Additional SAW, Carrier phase output, Internal oscillator, Programmable flash memory, Timepulse output
