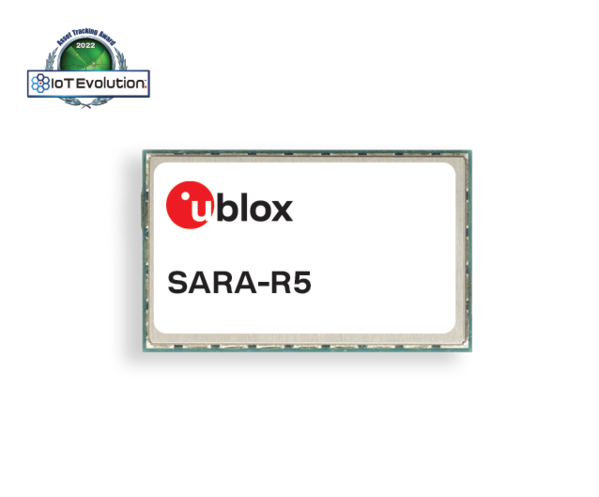

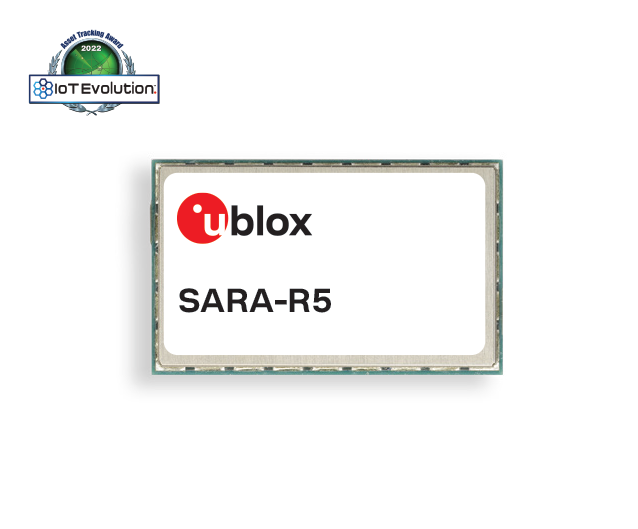

SARA-R500S-01B
u-blox*Multi-band LTE-M/NB-IoT mod.*Cat. M1/NB2
no GNSS*Secure Cloud*16x26mm*LGA*5G-ready
Use restriction: 4G M2M
IPR coverage: Premium
no GNSS*Secure Cloud*16x26mm*LGA*5G-ready
Use restriction: 4G M2M
IPR coverage: Premium
Manufacturer Item No.:
SARA-R500S-01B
Item number:
SARA-R500S-01B
from 1 pieces
31,94 € / 1 pieces
from 10 pieces
24,84 € / 1 pieces
from 50 pieces
20,33 € / 1 pieces
from 100 pieces
18,63 € / 1 pieces
Add to Favorites
Designed to last an IoT lifetime: 5G-ready with the u-blox UBX-R5 chipset
- Built-in Secure Cloud functionality with hardware-based root of trust inside discrete secure element
- IoT-Security-as-a-Service protects your business-critical data from device to cloud
- Accurate and reliable positioning, always and everywhere, with u-blox M8 GNSS receiver
- Optimized ultra-low power consumption
- Cost-effective, power efficient, end-to-end IoT communication with MQTT Anywhere and MQTT Flex
| Form factor: | SARA |
|---|---|
| Chip: | u-blox R5 |
| Cellular Regions: | Multi-Region |
| LTE Bands: | 1, 12, 13, 18, 19, 2, 20, 25, 26, 28, 3, 4, 5, 66, 8, 85 |
| Datarate: | M1 (588 kbit/s DL and 1119 kbit/s UL), NB2 (127 kbit/s DL and 158.5 kbit/s UL) |
| UART: | 1 |
| USB: | 1 |
| I2C: | 1 |
| GPIO: | 6 |
| Voltage: | 3 - 4.5 VDC |
| Temperature: | -40 to +85 °C |
| Dimensions: | 26 x 16 x 2.2 mm |
