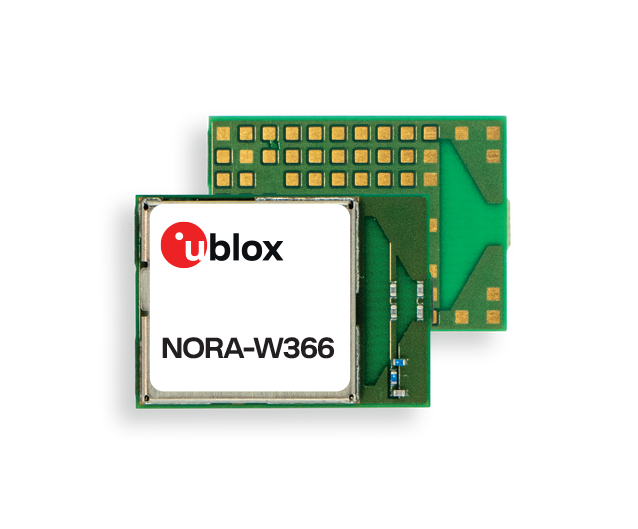

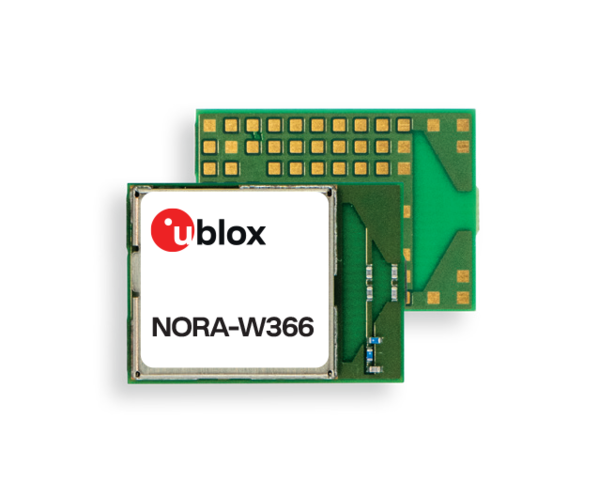

NORA-W366-00B
u-blox*Dual-band stand-alone mod.*Wi-Fi4, BLEv5.0
u-ConnectXpress*PCB ant.*RTL8720DF*10.4x14.3x1.9mm
u-ConnectXpress*PCB ant.*RTL8720DF*10.4x14.3x1.9mm
Manufacturer Item No.:
NORA-W366-00B
Item number:
NORA-W366-00B
from 1 pieces
8,75 € / 1 pieces
from 10 pieces
8,54 € / 1 pieces
from 50 pieces
8,47 € / 1 pieces
from 100 pieces
8,33 € / 1 pieces
from 250 pieces
8,20 € / 1 pieces
Add to Favorites
Compact dual-band Wi-Fi modules with u-connectXpress
- Dual-band Wi-Fi 4 and Bluetooth Low Energy 5
- u-connectXpress software for accelerated time to market
- Wide range of embedded security features
- Small footprint, multiple antenna options, pin compatible with other NORA modules
- Global certification
| Form factor: | NORA |
|---|---|
| Chip: | RTL8720DF |
| Wi-Fi Standard: | Wi-Fi 4 dual-band |
| Bluetooth Standard: | v5.0 (Bluetooth Low Energy) |
| Antenna Option: | Embedded PCB antenna |
| Type : | stand-alone |
| Software: | uConnectXpress |
| max. Range: | tbd |
| Voltage: | 3 - 3.6 VDC |
| Temperature: | -40 to +105 °C |
| Dimensions: | 14.3 x 10.4 x 1.9 mm |
| UART: | 1 |
| S/W Features: | Access point, AT command support, Extended data mode protocol, Factory programmed MAC address(es), Low energy serial port service, Point-to-point protocol (PPP), Secure boot, Simultaneous GATT server and client, Wi-Fi enterprise security, WPA3 |
