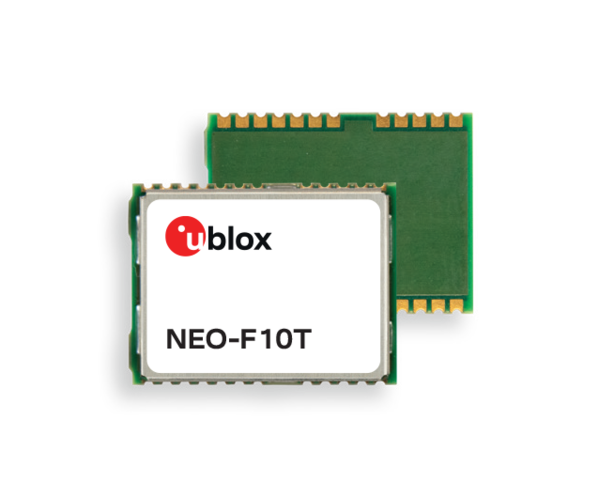

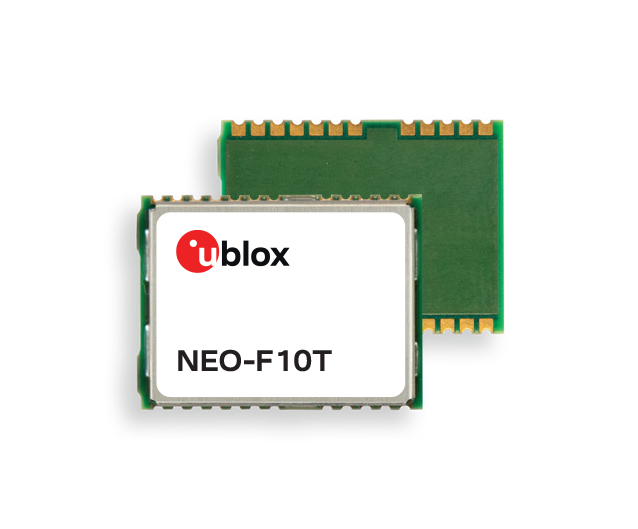

NEO-F10T-00B
u-blox F10*NEO*dual-band GNSS Module*Timing*LCC*12x16mm*250 pcs/reel
Manufacturer Item No.:
NEO-F10T-00B
Item number:
NEO-F10T-00B
from 1 pieces
142,56 € / 1 pieces
from 10 pieces
119,35 € / 1 pieces
from 50 pieces
109,19 € / 1 pieces
from 100 pieces
98,69 € / 1 pieces
Add to Favorites
Compact dual-band GNSS receiver with nanosecond-level timing accuracy
- Meets 5G time synchronization requirements on a global scale
- Unaffected by ionospheric errors
- Combines accurate timing with low power consumption
- Built-in security for highest robustness against malicious attacks
- Industry-standard compact NEO form factor – easy upgrade from NEO-M8T
| Form factor: | NEO |
|---|---|
| Chip: | u-blox F10 |
| GNSS Bands: | L1 / L5 |
| GNSS Oscillator: | TCXO |
| Memory: | Flash |
| Antenna Option: | Antenna pin |
| GNSS supported: | GPS / QZSS, Galileo, GLONASS, Beidou, NavIC |
| S/W Features: | Additional SAW, Carrier phase output, Internal oscillator, Programmable flash memory, Timepulse output |
| Temperature: | -40 to +85 °C |
| Dimensions: | 16 x 12.2 x 2.4 mm |
| UART: | 1 |
| Voltage: | 2.7 - 3.6 VDC |
