T9602-3-D-1

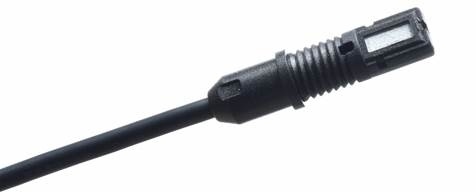

AMPHENOL*T9602, Humidity Sensor. Digital I2C
Manufacturer Item No.:
T9602-3-D-1
Item number:
T9602-3-D-1
from 100 pieces
34,37 € / 1 pieces
from 500 pieces
27,49 € / 1 pieces
Add to Favorites
Product description
Telaire T9602 IP67 Harsh Environment Humidity & Temperature Sensor is a fully-calibrated and temperature-compensated combined humidity and temperature sensor supplied in a water-resistant IP67 package, making it the most advanced and cost-effective sensing solution for virtually any type of harsh environment application.
Telaire T9602 provides linearized output signals in one of two interfaces Digital (I2C) Output or Pulse Density Modulated (PDM) Output convertible to an analog signal to meet a wider range of customer requirements.
| Voltage: | 3.3 - 5V |
|---|---|
| Temperature: | -20 to +70 °C |
| Series: | T9602 |
| Type : | 1m cable length |
| Measurement Range: | 0-95% |
| Response Time: | 29 sec. |
| Temperature Accuracy: | +/- 0.5% @ 25°C |
| Output: | I2C |
| Output Type: | digital |
| Temperature Response Time: | 116 sec. |
| Measurement Accuracy: | +/- 2.0 % |
| Resolution: | 14 bit (0.01%RH) |
| Temperature Resolution: | 14 bit (0.01°C) |
