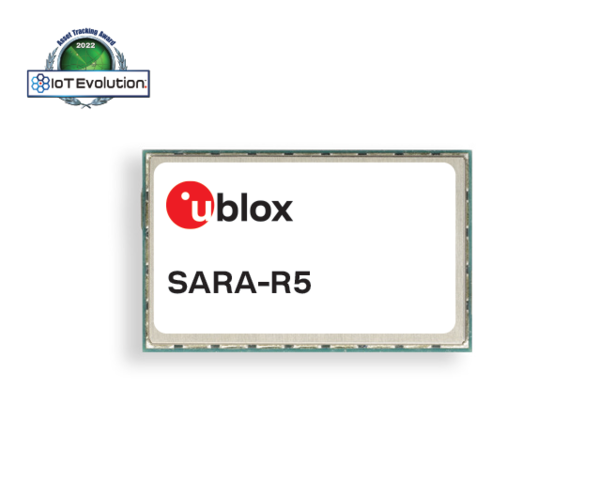

SARA-R510M8S-01B
u-blox*Multi-band LTE-M/NB-IoT mod.*Cat.M1/NB2 GNSS*Secure Cloud*16x26mm*LGA*5G-ready
Use restriction: 4G M2M
IPR coverage: Premium
Use restriction: 4G M2M
IPR coverage: Premium
Manufacturer Item No.:
SARA-R510M8S-01B
Item number:
SARA-R510M8S-01B
from 1 pieces
36,97 € / 1 pieces
from 10 pieces
28,76 € / 1 pieces
from 50 pieces
23,53 € / 1 pieces
from 100 pieces
21,57 € / 1 pieces
Add to Favorites
Designed to last an IoT lifetime: 5G-ready with the u-blox UBX-R5 chipset
Built-in Secure Cloud functionality with hardware-based root of trust inside discrete secure element
IoT-Security-as-a-Service protects your business-critical data from device to cloud
Accurate and reliable positioning, always and everywhere, with u-blox M8 GNSS receiver
Optimized ultra-low power consumption
Cost-effective, power efficient, end-to-end IoT communication with MQTT Anywhere and MQTT Flex
| Form factor: | SARA |
|---|---|
| Chip: | u-blox R5 |
| Cellular Regions: | Multi-Region |
| LTE Bands: | 1, 12, 13, 18, 19, 2, 20, 25, 26, 28, 3, 4, 5, 66, 8, 85 |
| Datarate: | M1 (588 kbit/s DL and 1119 kbit/s UL), NB2 (127 kbit/s DL and 158.5 kbit/s UL) |
| GNSS supported: | BeiDou, Galileo, GLONASS, GPS / QZSS |
| GNSS Bands: | L1 |
| Antenna Option: | Dedicated GNSS antenna |
| UART: | 2 |
| USB: | 1 |
| I2C: | 1 |
| GPIO: | 6 |
| Voltage: | 3 - 4.5 VDC |
| Temperature: | -40 to +85 °C |
| Dimensions: | 26 x 16 x 2.2 mm |
