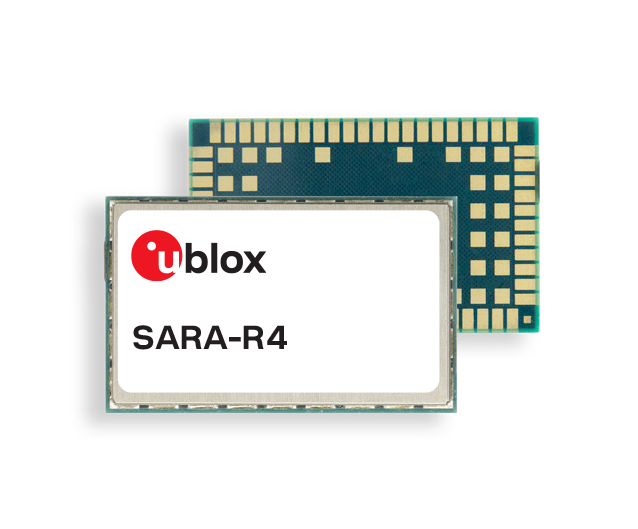

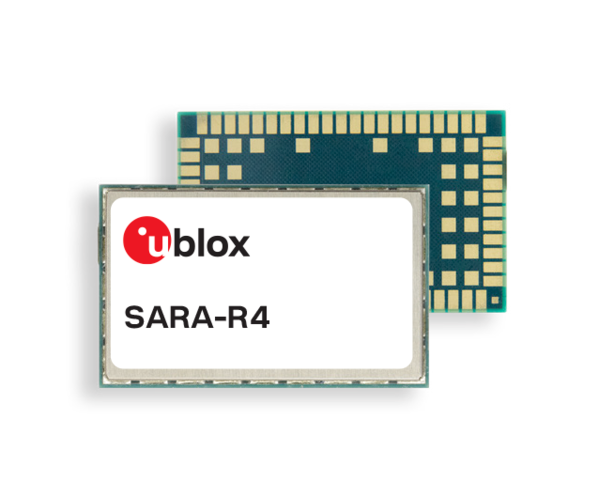

SARA-R422-00B

u-blox*LTE Cat M1/NB2/2G module*band configurable *16x26mm*LGA*250pcs/reel

Use restriction: 4G M2M
IPR coverage: Premium

Please contact sales if you require a different use restriction/coverage option.
Manufacturer Item No.:
SARA-R422-00B
Item number:
SARA-R422-00B
Choose Variant:
SARA-R422-00B
SARA-R422-01B
SARA-R422-00B
from 1 pieces 30,11 € / 1 pieces
from 10 pieces 23,42 € / 1 pieces
from 50 pieces 19,16 € / 1 pieces
from 100 pieces 17,57 € / 1 pieces
30,11 € / 1 pieces
Orderable, delivery time approx. 8 weeks
plus Shipping and VAT
Usually ships in 1 to 3 days
Add to Favorites

Built-in foundation and end-to-end security with root of trust

  • Power autonomy through positioning in the cloud; integrated u-blox M10 GNSS receiver and CloudLocate
  • Software-based configurability within each hardware design
  • Simultaneous LTE communication with GNSS positioning
  • Guaranteed best coverage with 23 dBm output power
  • Cost-effective, power efficient, end-to-end IoT communication with MQTT Anywhere and MQTT Flex
Form factor:SARA
Cellular Regions:Multi-Region
LTE Bands:1, 12, 13, 18, 19, 2, 20, 25, 26, 28, 3, 4, 5, 66, 8, 85
GSM Bands:Quad-band
Datarate:M1 (588 kbit/s DL and 1119 kbit/s UL), NB2 (127 kbit/s DL and 158.5 kbit/s UL)
Temperature:-40 to +85 °C
Dimensions:26 x 16 x 2.5 mm
Voltage:3.2 - 4.5 VDC
UART:1
USB:1
I2C:1
GPIO:6
S/W Features:Antenna detection, Dual stack IPv4/IPv6, eDRX, Embedded FTP/HTTP, Embedded MQTT, MQTT-SN, Embedded TCP/UDP, Embedded TLS 1.2, FW update via serial interface, Last gasp, Power save mode, rel.12, uFOTA, Ultra low PSM (deep sleep)
