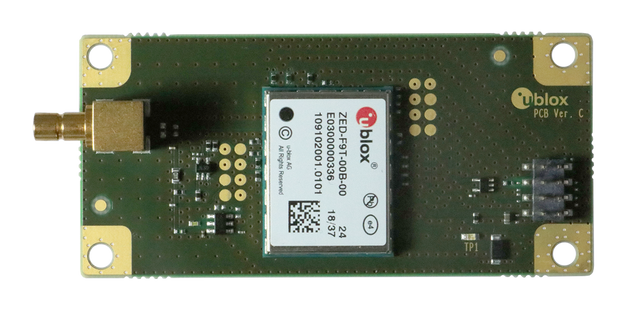

- Timing board with ZED-F9T
- Industry-standard form factor
- SMB antenna connector
- 8-pin connector for easy connectivity
| Form factor: | RCB |
|---|---|
| Voltage: | 2.7 - 3.6 VDC |
| Chip: | u-blox F9 |
| GNSS supported: | BeiDou, Galileo, GLONASS, GPS / QZSS |
| GNSS Oscillator: | TCXO |
| Temperature: | -40 to +85 °C |
| Dimensions: | 67.18 x 31.75 mm |
| UART: | 1 |
| S/W Features: | Additional SAW, Carrier phase output, Internal oscillator, Programmable flash memory, Timepulse output |
