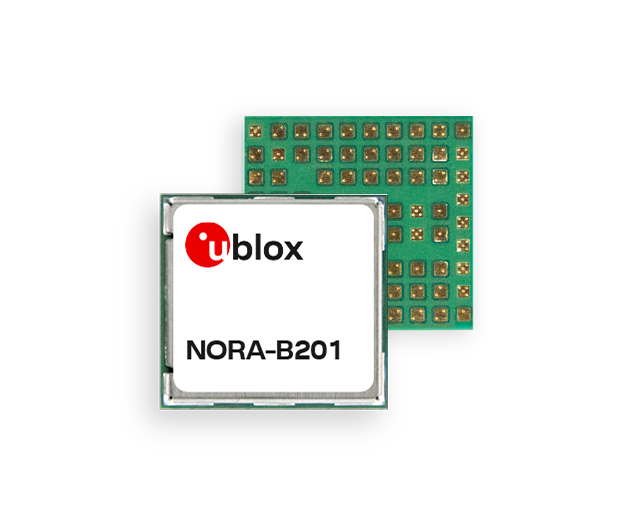

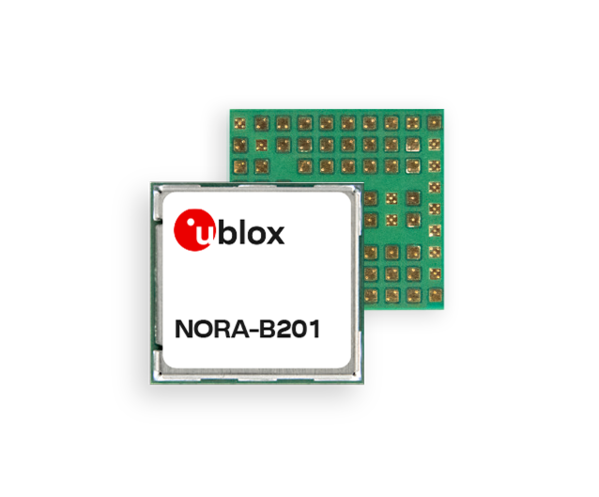

NORA-B201-00B
u-blox*Bluetooth 5.4 LE stand-alone module
antenna-pin*nRF54L15*10.4x11.2x1.9mm*Open CPU
antenna-pin*nRF54L15*10.4x11.2x1.9mm*Open CPU
Manufacturer Item No.:
NORA-B201-00B
Item number:
NORA-B201-00B
Choose Variant:
NORA-B201-00B - Antenna Pin - nRF54L15
from 1 pieces
7,77 € / 1 pieces
from 10 pieces
7,23 € / 1 pieces
from 50 pieces
6,41 € / 1 pieces
from 100 pieces
5,76 € / 1 pieces
Add to Favorites
Stand-alone Bluetooth 5.4 Low Energy modules
- Bluetooth LE 5.4 module for ultra-low power IoT applications
- Professional grade modules supporting Thread, Zigbee, and Matter
- High performance ARM Cortex-M33 for demanding applications
- Designed for PSA Certified Level 3 security with tamper detection
- Direction finding support for indoor positioning
- Variants with antenna pin and embedded antenna
- Global certification
| Form factor: | NORA |
|---|---|
| Chip: | nRF54L15 |
| Bluetooth Standard: | V5.4 (Bluetooth Low Energy) |
| Antenna Option: | Antenna pin |
| max. Range: | tbd |
| Type : | stand-alone |
| Software: | openCPU |
| CPU Core: | ARM Cortex M33 @ 128MHz |
| RAM: | 256 kBytes |
| Flash: | 1524 kByte (NVM) |
| UART: | 1 |
| TWI: | 1 |
| SPI: | 1 |
| GPIO: | 31 |
| Voltage: | 1.7 - 3.6 VDC |
| Temperature: | -40 to +85 °C |
| Dimensions: | 11.2 x 10.4 x 1.9 mm |
