NORA-B101-00B

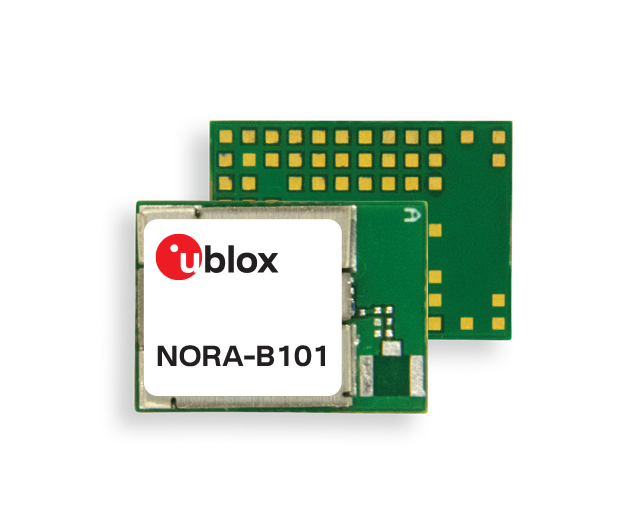

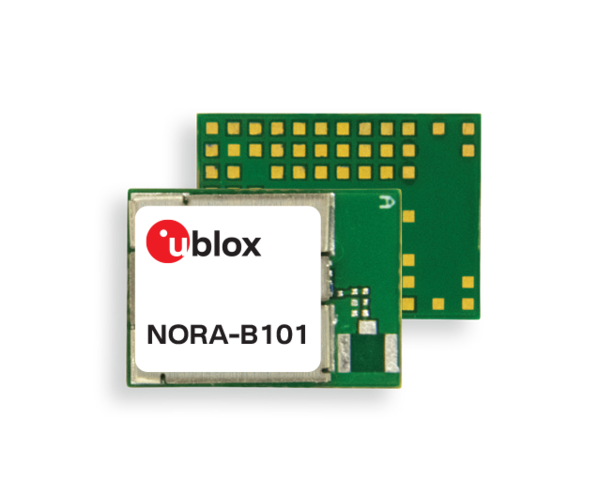

u-blox*Bluetooth 5.2 LE stand-alone module antenna-pin*nRF5340*10.4x14.3x1.8mm*Open CPU
Manufacturer Item No.:
NORA-B101-00B
Item number:
NORA-B101-00B
Choose Variant:
NORA-B101-00B - Antenna Pin
from 1 pieces
12,36 € / 1 pieces
from 10 pieces
11,12 € / 1 pieces
from 50 pieces
10,39 € / 1 pieces
from 100 pieces
9,93 € / 1 pieces
Add to Favorites
- Arm® TrustZone® and CryptoCell® 312 for enhanced security
- Multi-protocol support for Bluetooth 5.2, Bluetooth mesh, Matter, Thread, Zigbee, and NFC
- Support for Bluetooth Low Energy audio and Bluetooth direction finding
- Option with front-end module PA/LNA for extended range
- Extended temperature range up to 105 °C
- Global certification
| Form factor: | NORA |
|---|---|
| Chip: | nRF5340 |
| Bluetooth Standard: | v5.2 (Bluetooth Low Energy) |
| max. Range: | 700 m |
| max. Throughput: | 1.4 Mbit/s |
| Antenna Option: | Antenna pin |
| Software: | openCPU |
| Type : | stand-alone |
| UART: | 5 |
| USB: | 1 |
| GPIO: | 48 |
| I2S: | 1 |
| SPI: | 6 |
| TWI: | 5 |
| Voltage: | 1.7 - 5.5 VDC |
| Temperature: | -40 to +105 °C |
| Dimensions: | 14.3 x 10.4 x 1.7 mm |
