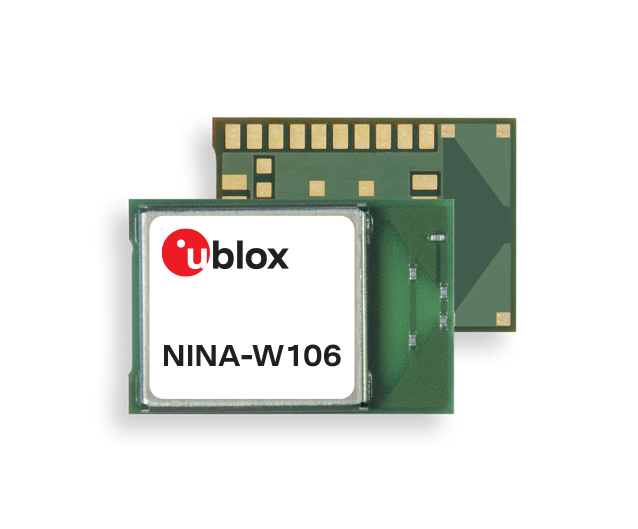

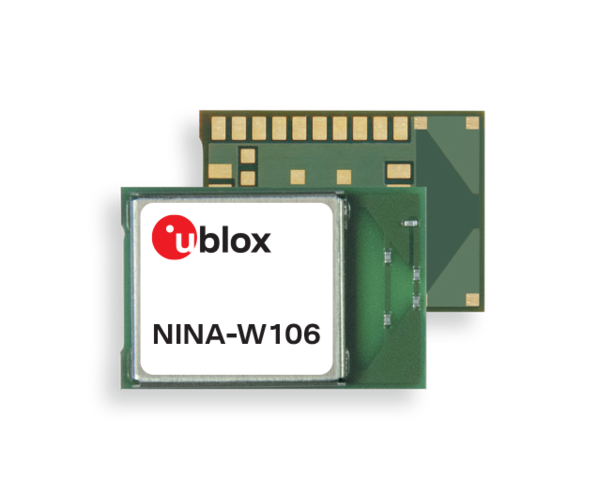

NINA-W106-00B

u-blox*802.11bgn Wi-Fi & BT Stand-alone module 4096kB Flash*int. antenna*10.0x14.0x2.2 mm
Manufacturer Item No.:
NINA-W106-00B
Item number:
NINA-W106-00B
Choose Variant:
NINA-W106-00B
NINA-W106-10B
NINA-W106-00B
from 1 pieces 6,40 € / 1 pieces
from 10 pieces 5,87 € / 1 pieces
from 50 pieces 5,42 € / 1 pieces
from 100 pieces 5,04 € / 1 pieces
6,40 € / 1 pieces
Orderable, delivery time approx. 12 weeks
plus Shipping and VAT
Usually ships in 1 to 3 days
Add to Favorites

The smallest industrial Wi-Fi and Bluetooth modules

  • Wi-Fi 802.11b/g/n
  • Dual-mode Bluetooth v4.2
  • Powerful open CPU support for customized applications
  • Small footprint and multiple antenna options
  • Pin compatible with other NINA modules
  • Global certification

Form factor:NINA
Chip:ESP32
Wi-Fi Standard:Wi-Fi 4 Single-Band
Bluetooth Standard:v4.2 (Bluetooth Low Energy and BR/EDR)
Type :stand-alone
Software:openCPU
max. Range:400 m
max. Throughput:25 Mbit/s
Antenna Option:Internal antenna
Temperature:-40 to +85 °C
Voltage:3 - 3.6 VDC
Dimensions:14 x 10 x 2.2 mm
UART:3
GPIO:26
I2S:1
SDIO:1
SPI:3
TWI:3
RMII/Ethernet:1
S/W Features:Access point, Factory programmed MAC address(es), FOTA, FOTA according to CTCC/CMCC, Point-to-point protocol (PPP), Secure boot ready, Simultaneous GATT server and client, Supports customer applications, Wi-Fi enterprise security, WPA3
