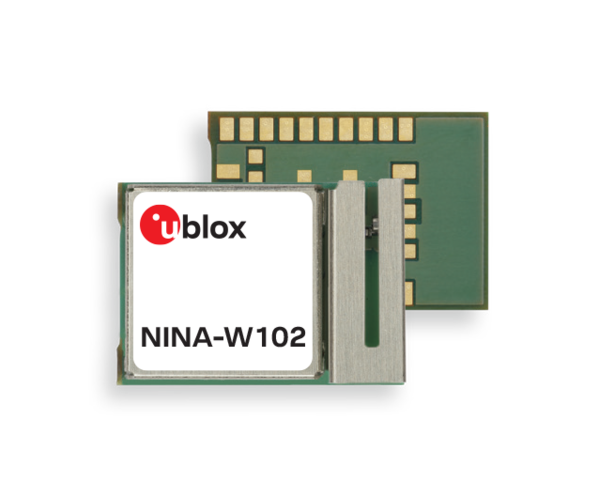

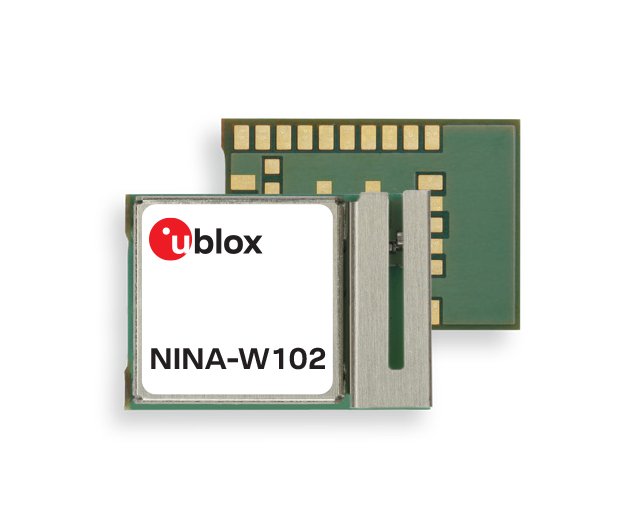

NINA-W102-01B
u-blox*802.11bgn Wi-Fi & BT stand-alone module int. antenna*10.0x14.0x3.8 mm
Manufacturer Item No.:
NINA-W102-01B
Item number:
NINA-W102-01B
from 1 pieces
6,61 € / 1 pieces
from 10 pieces
6,06 € / 1 pieces
from 50 pieces
5,60 € / 1 pieces
from 100 pieces
5,20 € / 1 pieces
Add to Favorites
| Form factor: | NINA |
|---|---|
| Chip: | ESP32 |
| Wi-Fi Standard: | Wi-Fi 4 Single-Band |
| Bluetooth Standard: | v4.2 (Bluetooth Low Energy and BR/EDR) |
| Type : | stand-alone |
| Software: | openCPU |
| max. Range: | 400 m |
| max. Throughput: | 25 Mbit/s |
| Antenna Option: | Internal antenna |
| Temperature: | -40 to +85 °C |
| Dimensions: | 14 x 10 x 3.8 mm |
| Voltage: | 3 - 3.6 VDC |
| UART: | 3 |
| GPIO: | 24 |
| I2S: | 1 |
| SDIO: | 1 |
| SPI: | 3 |
| TWI: | 3 |
| RMII/Ethernet: | 1 |
| S/W Features: | Access point, Factory programmed MAC address(es), FOTA, FOTA according to CTCC/CMCC, Point-to-point protocol (PPP), Secure boot ready, Simultaneous GATT server and client, Supports customer applications, Wi-Fi enterprise security, WPA3 |
