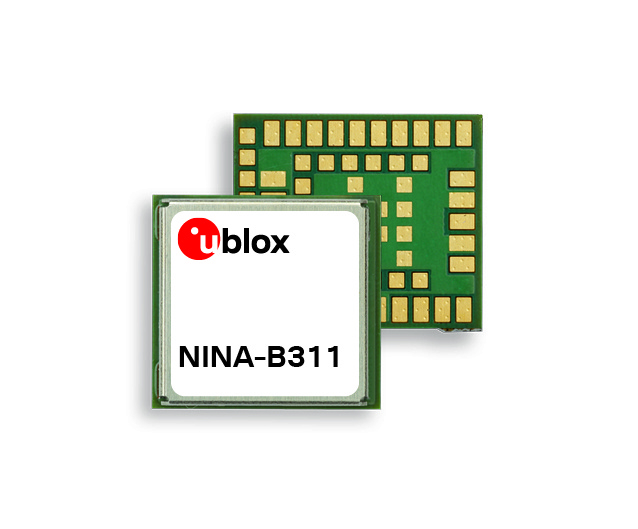

NINA-B311-02B
u-blox*Bluetooth 5.0 LE module*antenna pad 10x15x3.5mm*u-connectXpress
Manufacturer Item No.:
NINA-B311-02B
Item number:
NINA-B311-02B
from 1 pieces
13,28 € / 1 pieces
from 10 pieces
12,35 € / 1 pieces
from 50 pieces
10,95 € / 1 pieces
from 100 pieces
9,83 € / 1 pieces
Add to Favorites
- Full Bluetooth 5 with high data rate and long range
- u-connect software for accelerated time to market
- Pin compatible with other NINA modules
- Superior security functionality
- Global certification
- Multiple antenna options
| Form factor: | NINA |
|---|---|
| Chip: | nRF52840 |
| Bluetooth Standard: | v5.0 (Bluetooth Low Energy) |
| Type : | stand-alone |
| Software: | uConnectXpress |
| Antenna Option: | Antenna pin |
| max. Throughput: | 0.8 Mbit/s |
| Voltage: | 1.7 - 3.6 VDC |
| Temperature: | -40 to +85 °C |
| Dimensions: | 11.6 x 10 x 2.2 mm |
| UART: | 2 |
| USB: | 1 |
| GPIO: | 28 |
| S/W Features: | AT command support, Bluetooth high speed (LE 2M PHY), Bluetooth mesh, Extended data mode protocol, Factory programmed MAC address(es), Low energy serial port service, Simultaneous GATT server and client |
