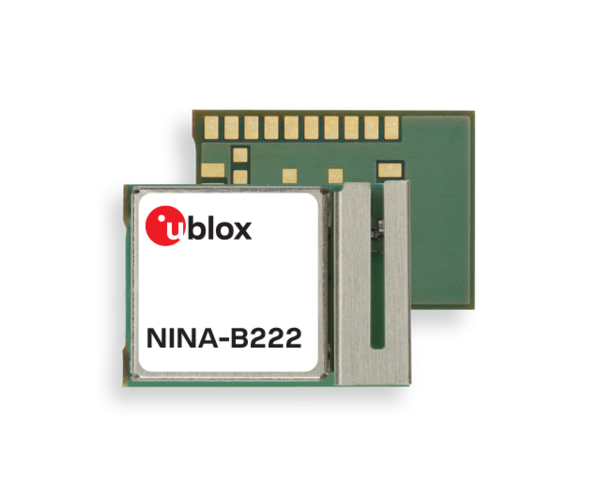

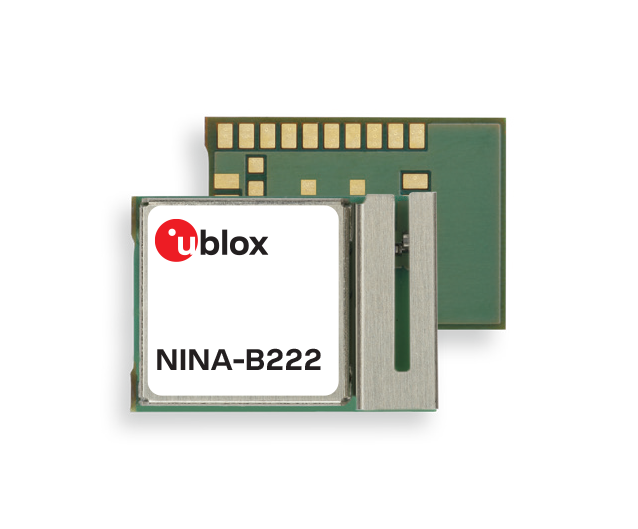

NINA-B222-03B
u-blox*Bluetooth Dual Mode*stand-alone*int. ant* 10*14mm*u-blox connectivity S/W
Manufacturer Item No.:
NINA-B222-03B
Item number:
NINA-B222-03B
from 1 pieces
12,75 € / 1 pieces
from 10 pieces
11,86 € / 1 pieces
from 50 pieces
10,52 € / 1 pieces
from 100 pieces
9,44 € / 1 pieces
Add to Favorites
- Simultaneous dual-mode Bluetooth
- u-connect software for accelerated time to market
- Built-in security with secure boot
- Small footprint and multiple antenna options
- Pin compatible with other NINA modules
- Global certification
| Form factor: | NINA |
|---|---|
| Chip: | ESP32 |
| Bluetooth Standard: | v4.2 (Bluetooth Low Energy and BR/EDR) |
| Antenna Option: | Internal antenna |
| Type : | stand-alone |
| Software: | uConnectXpress |
| max. Range: | 200 m |
| Voltage: | 3 - 3.6 VDC |
| max. Throughput: | 1 Mbit/s |
| Temperature: | -40 to +85 °C |
| Dimensions: | 14 x 10 x 3.8 mm |
| UART: | 1 |
| GPIO: | 13 |
| S/W Features: | AT command support, Extended data mode protocol, Factory programmed MAC address(es), Low energy serial port service, Secure boot, Simultaneous GATT server and client |
